Evaporative Emission Line Drawing

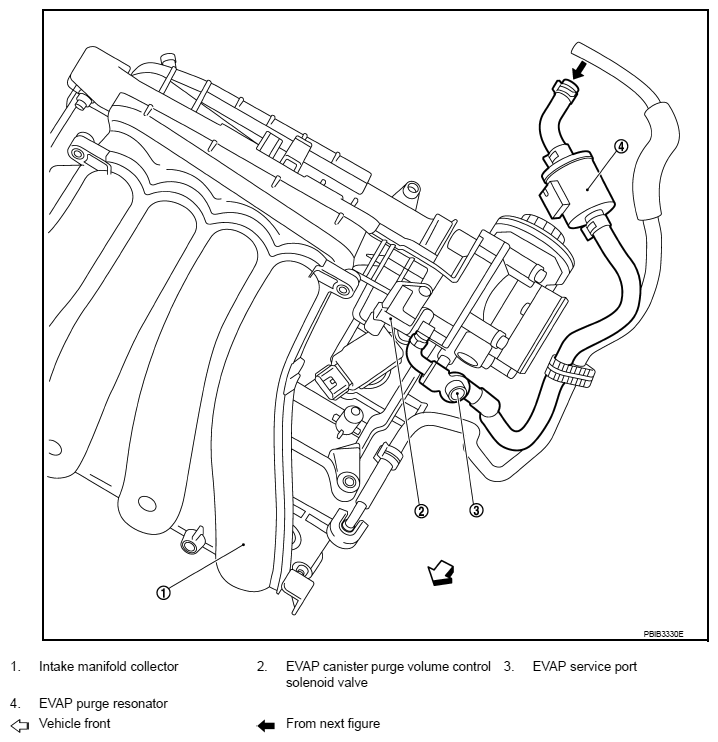

Fig 1: Identifying EVAP Purge Resonator
G08128811Courtesy of NISSAN NORTH AMERICA, INC.

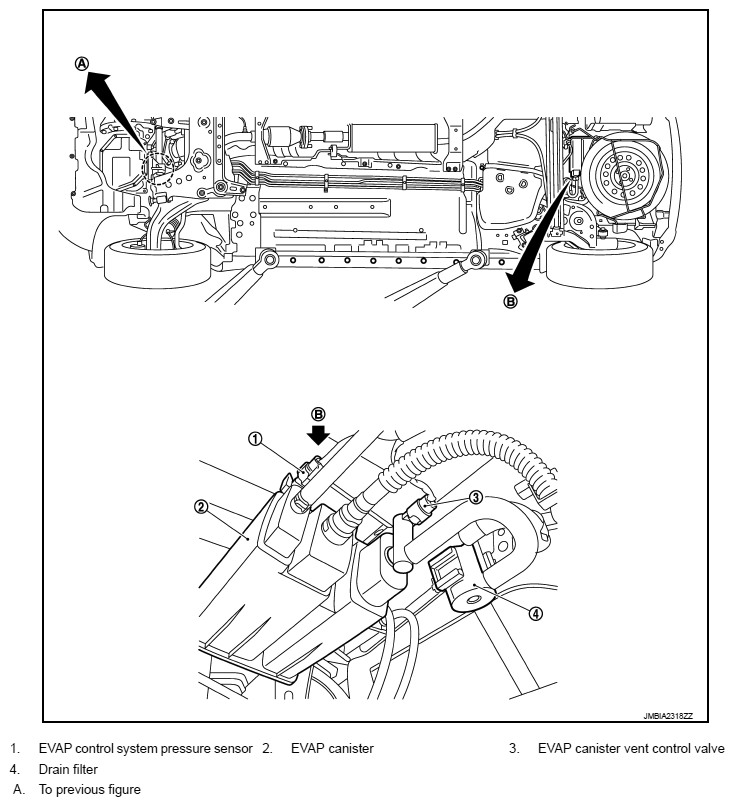

Fig 2: Identifying EVAP Canister
G08128812Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
