CVT Unit Connector End View (F24)

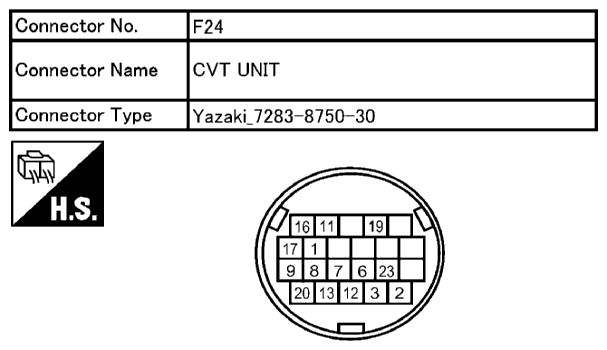

Fig 1: CVT Unit Connector End View (F24)

G10657708

Courtesy of NISSAN NORTH AMERICA, INC.
