Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction to the line(s) that should be checked in the table:

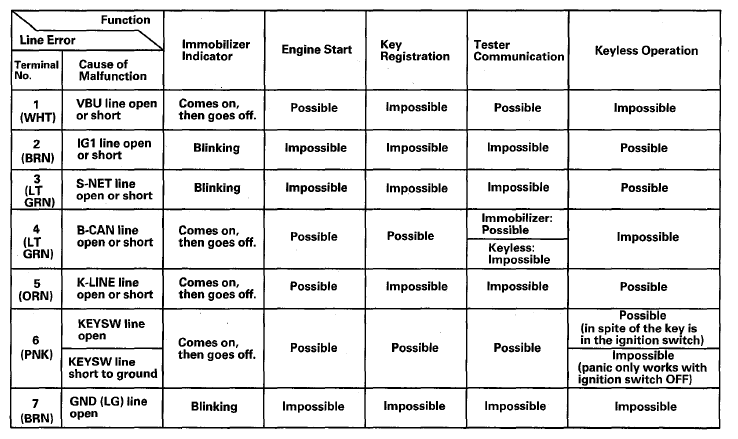

Fig 1: Identifying Malfunctioning Circuit Functions Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
