Exploded View

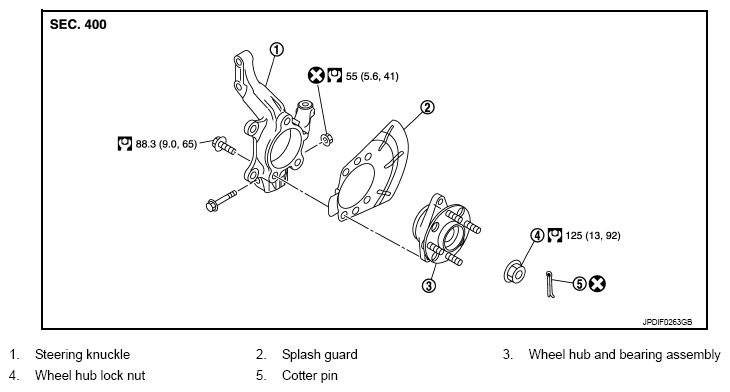

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

G08126964

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure
