Symptom Table

  1. Perform "Data Monitor" of CONSULT to check for any malfunctioning item.
  2. Check the malfunction combinations.

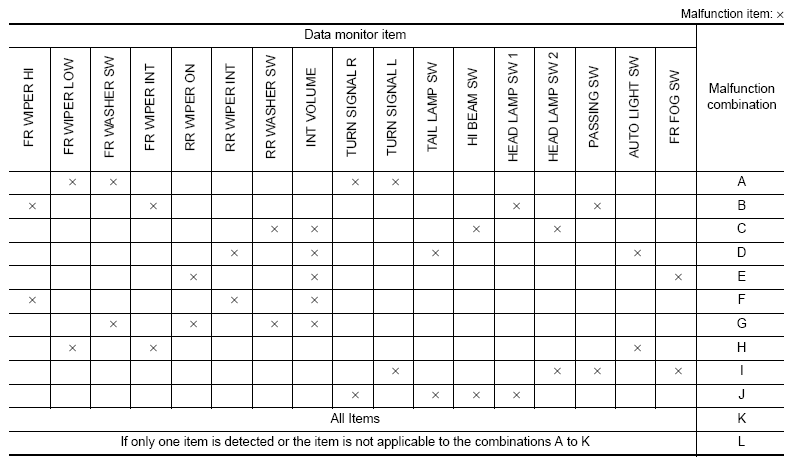

    Fig 1: Identifying Combination Switch System Symptom Table
    G08130491Courtesy of NISSAN NORTH AMERICA, INC.
  3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
    Malfunction combination Malfunctioning part Repair or replace
    A Combination switch OUTPUT 1 circuit Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    B Combination switch OUTPUT 2 circuit
    C Combination switch OUTPUT 3 circuit
    D Combination switch OUTPUT 4 circuit
    E Combination switch OUTPUT 5 circuit
    F Combination switch INPUT 1 circuit Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    G Combination switch INPUT 2 circuit
    H Combination switch INPUT 3 circuit
    I Combination switch INPUT 4 circuit
    J Combination switch INPUT 5 circuit
    K BCM Replace BCM. Refer to "EXPLODED VIEW ".
    L Combination switch Replace combination switch.
