Exploded View

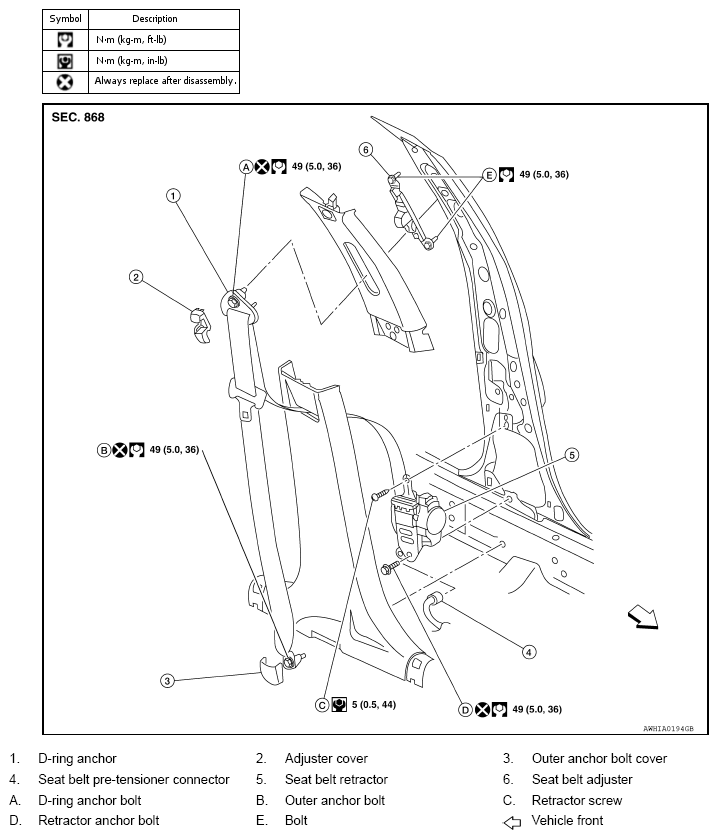

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications (Sedan Models)
G08439333Courtesy of NISSAN NORTH AMERICA, INC.

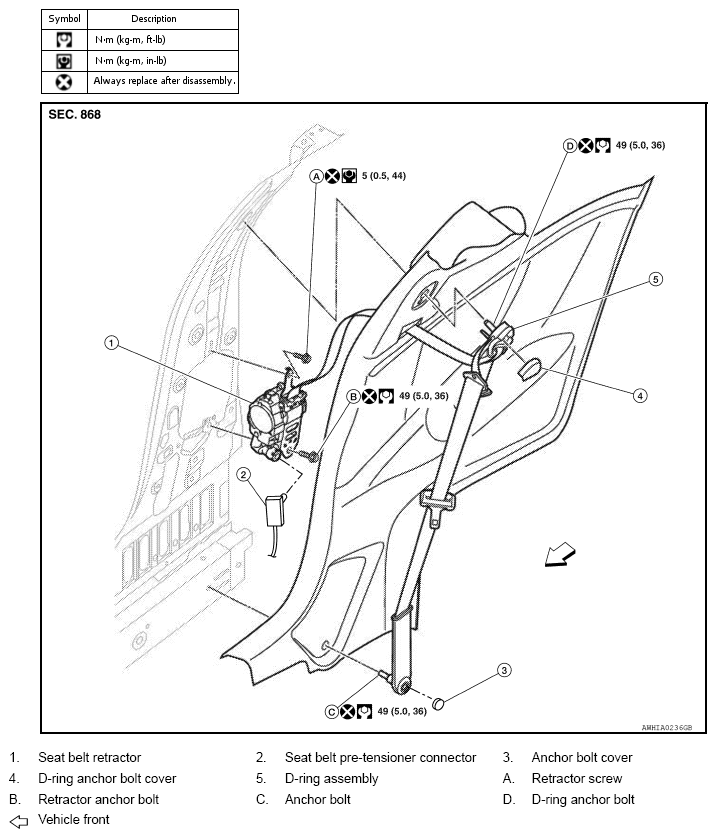

Fig 2: Exploded View Of Front Seat Belt With Torque Specifications (Coupe Models)
G08439334Courtesy of NISSAN NORTH AMERICA, INC.
