Section 17 (Engine Control System - Introduction (VQ35DE))
>>
Basic Inspection
>>
Diagnosis And Repair Work Flow
>>
Diagnostic Work Sheet
>>
Worksheet Sample
Worksheet Sample
WARNING:
This page is about a different variant/trim than selected.

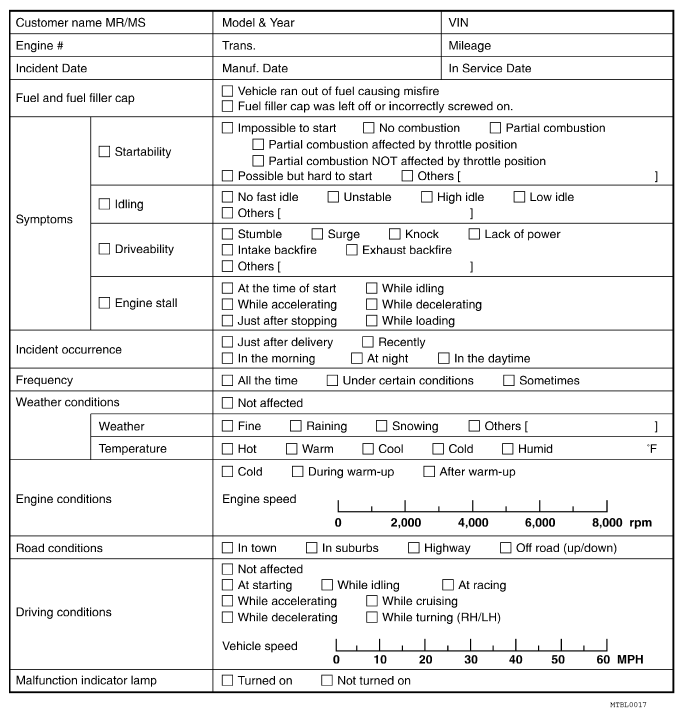

Fig 1: Diagnostic Work Sheet
Courtesy of NISSAN NORTH AMERICA, INC.
