Exploded View

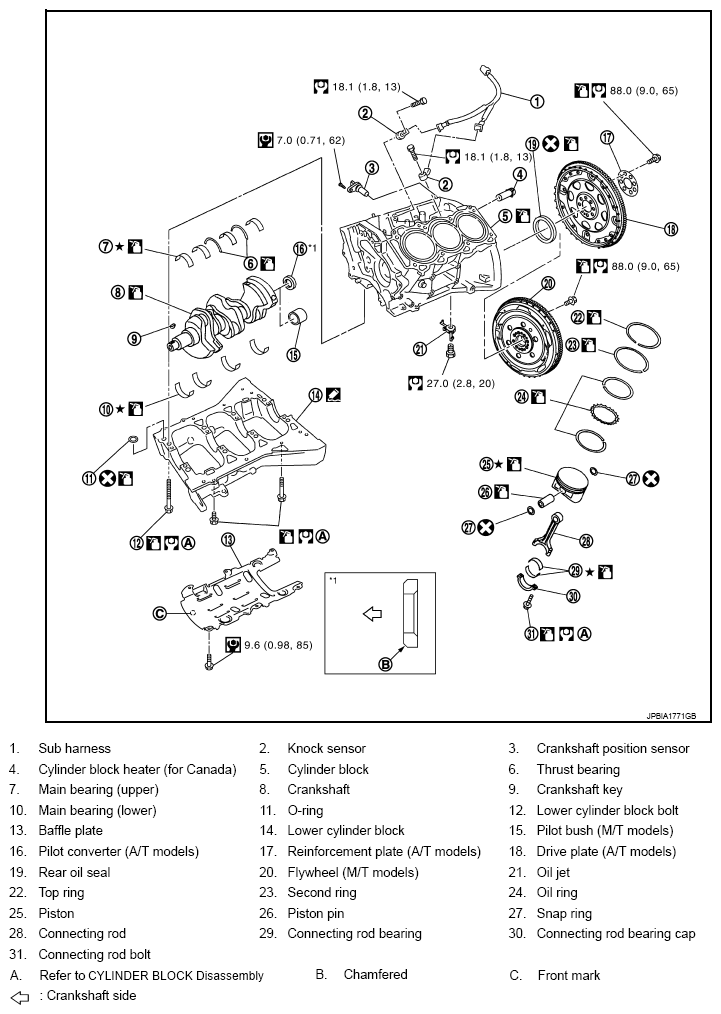

Fig 1: Exploded View Of Cylinder Block With Torque Specifications

G08102202

Courtesy of NISSAN NORTH AMERICA, INC.
