Oil Pump, 2346 Brake, Front Brake Piston
>>
Exploded View
Exploded View

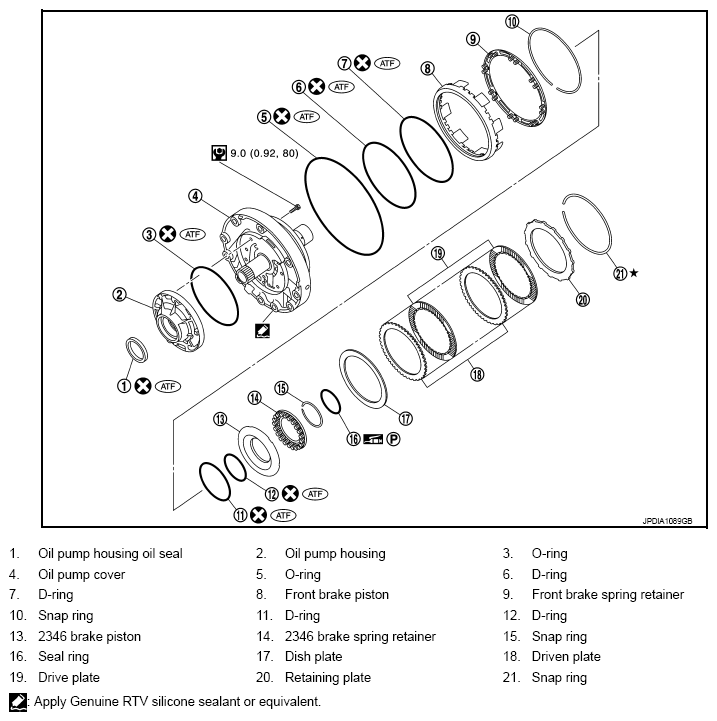

Fig 1: Exploded View Of Oil Pump, Brake And Front Brake Piston With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols not described on the above.
