Component Parts Location

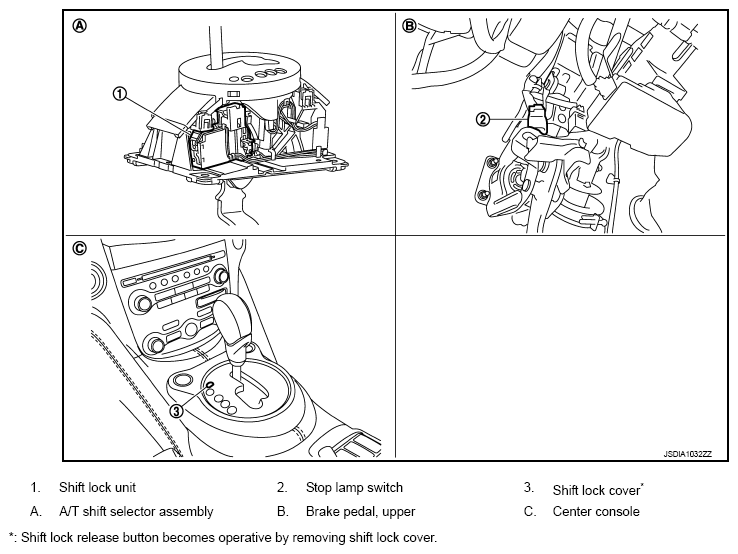

Fig 1: Identifying Shift Lock System Component Parts Location
G08104012Courtesy of NISSAN NORTH AMERICA, INC.

*: Shift lock release button becomes operative by removing shift lock cover.
