Removal and Installation: Removal

Disconnect the push-button ignition switch (1) fixing pawl using a remover tool (A), and then remove push-button ignition switch.

CAUTION: Always apply a protective tape (B) on instrument panel for protection.

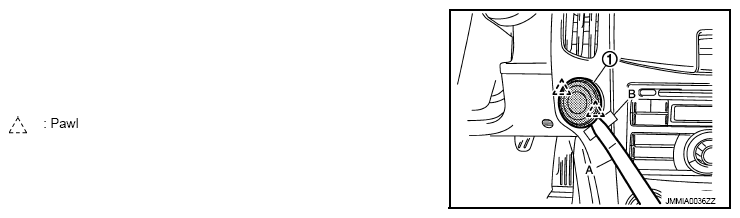

Fig 1: Removing Push-Button Ignition Switch Using Remover Tool
G08103560Courtesy of NISSAN NORTH AMERICA, INC.
