Components
Removal and Installation: Components

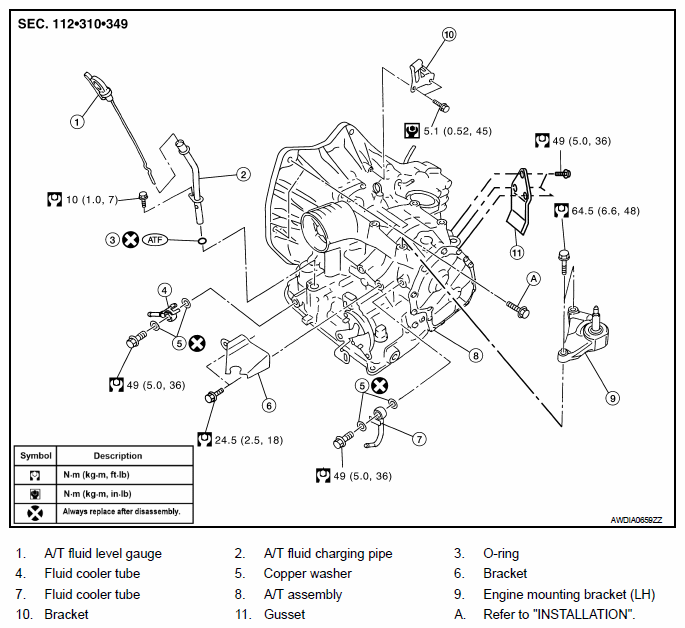

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
