Diagnosis Procedure

1. CHECK GROUND CONNECTIONS
   1. Turn ignition switch OFF.
   2. Loosen and retighten ground screws on the body.

      Refer to "GROUND INSPECTION ".

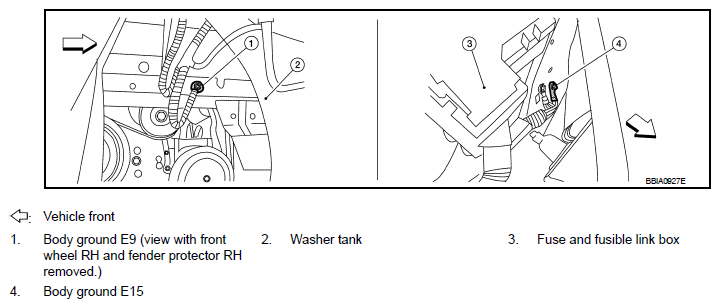

      Fig 1: Location Of Washer Tank, Fuse And Fusible Link Box And Body Ground E15

      Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK: GO TO 2.

      NG: Repair or replace ground connections.

2. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT
   1. Disconnect electric throttle control actuator harness connector (1).
      • : Vehicle front
      Fig 2: Location Of Electric Throttle Control Actuator Harness Connector

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Turn ignition switch ON.
   3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-III or tester.

   Voltage: Approximately 5 V

   Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: GO TO 3.

   NG: Repair open circuit or short to ground or short to power in harness connectors.

3. CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
   1. Turn ignition switch OFF.
   2. Disconnect ECM harness connector.
   3. Check harness continuity between ECM terminal 36 and electric throttle control actuator terminal 4.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

   4. Also check harness for short to ground or short to power.

   OK or NG

   OK: GO TO 4.

   NG: Repair open circuit or short to ground or short to power in harness or connectors.

4. CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
   1. Check harness continuity between ECM terminal 37 and electric throttle control actuator terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

   2. Also check harness for short to ground and short to power.

   OK or NG

   OK: GO TO 5.

   NG: Repair open circuit or short to ground or short to power in harness or connectors.

5. CHECK THROTTLE POSITION SENSOR

   Refer to "COMPONENT INSPECTION ".

   OK or NG

   OK: GO TO  7.

   NG: GO TO 6.

6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

   Replace the electric throttle control actuator. Refer to "REMOVAL AND INSTALLATION ".

   INSPECTION END

7. CHECK INTERMITTENT INCIDENT

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

INSPECTION END
