Without ROCKFORD FOSGATE

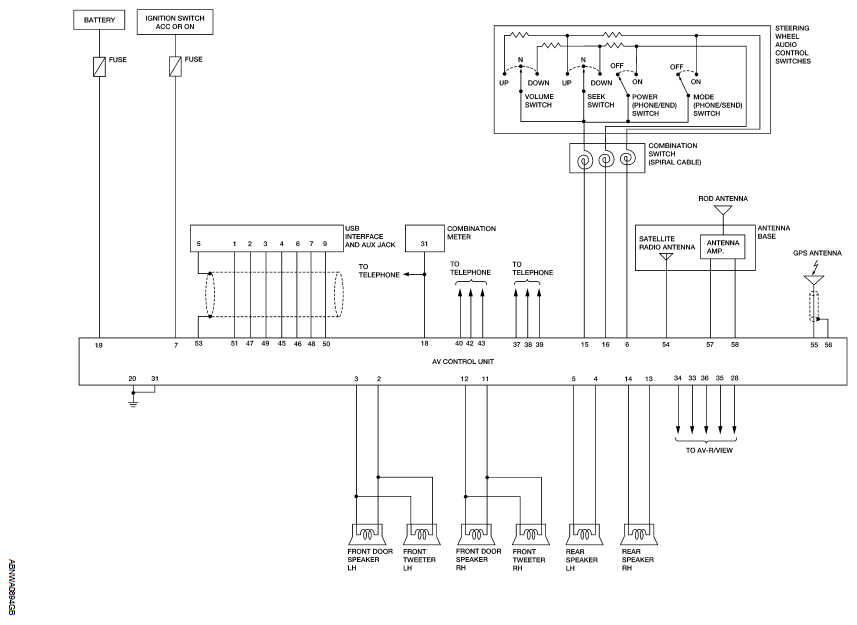

Fig 1: Audio System Without Rockford Fosgate Schematic Diagram

G07144734

Courtesy of NISSAN MOTOR CO., U.S.A.
