Warning Lamps: Schematic

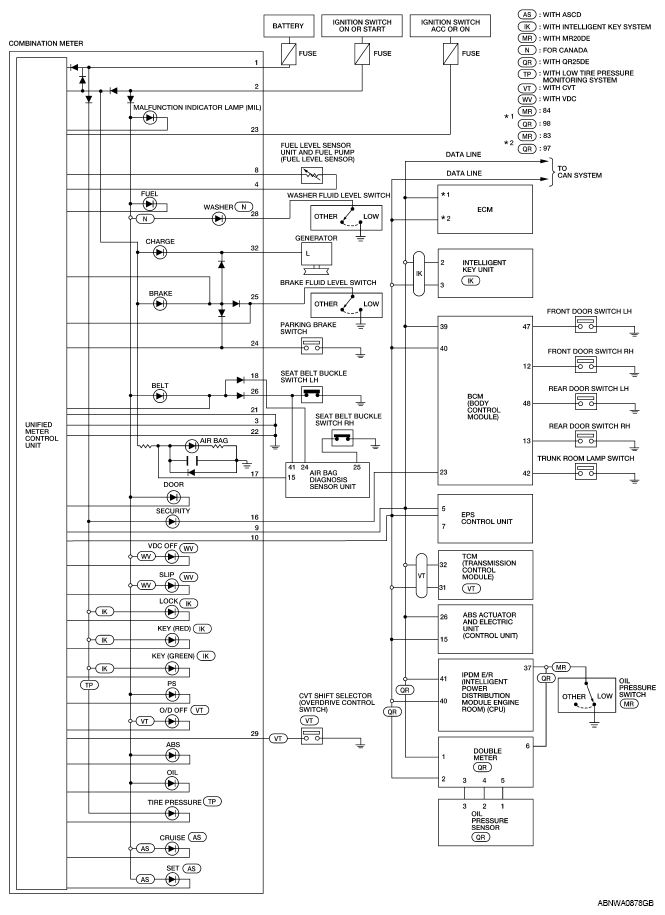

Fig 1: Warning Lamps - Schematic Diagram

G07143308

Courtesy of NISSAN MOTOR CO., U.S.A.
