Wiring Diagram - B/COMP -

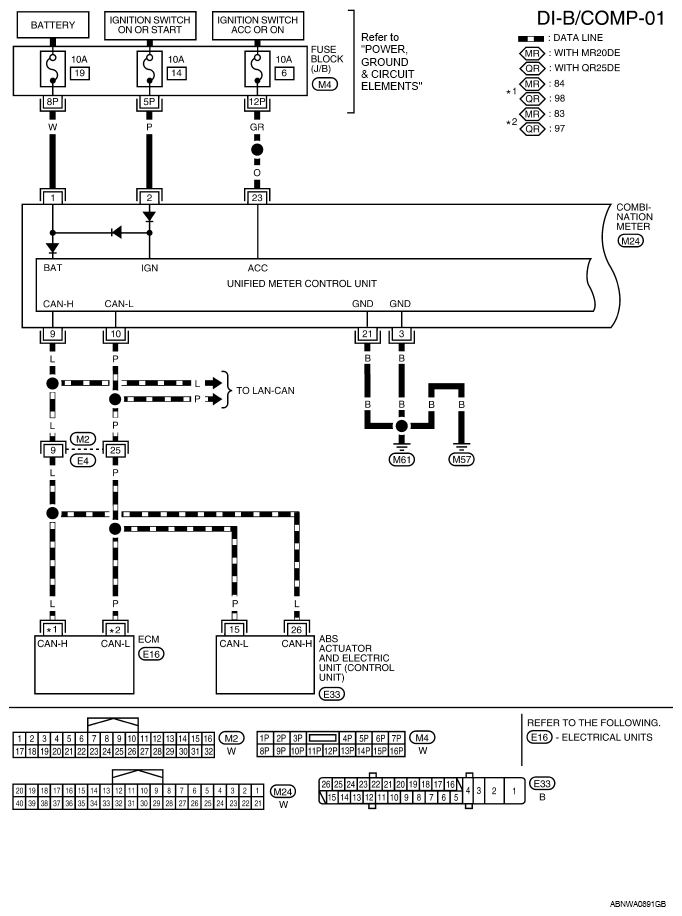

Fig 1: DI-B/COMP-01 - Wiring Diagram

G07143366

Courtesy of NISSAN MOTOR CO., U.S.A.

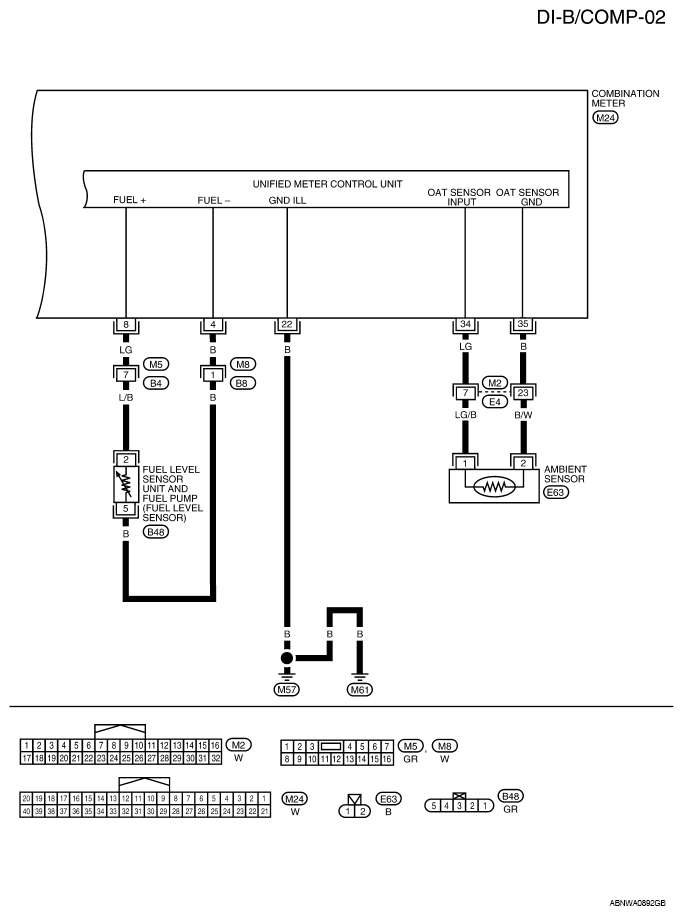

Fig 2: DI-B/COMP-02 - Wiring Diagram

G07143367

Courtesy of NISSAN MOTOR CO., U.S.A.
