System Description
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 4-step control [HIGH/MIDDLE/LOW/OFF].

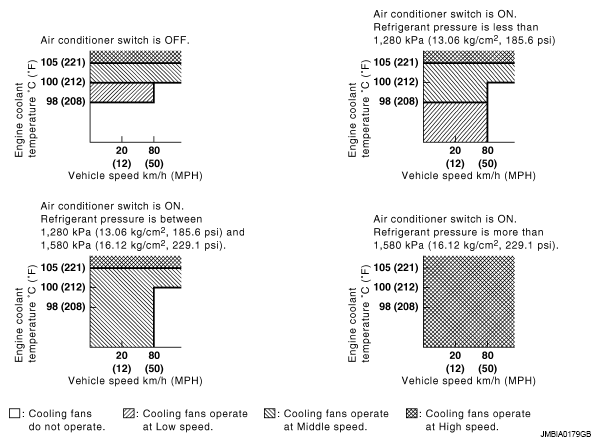

Cooling Fan Operation
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COOLING FAN RELAY OPERATION CHART
| Cooling fan speed | Cooling fan relay | ||
|---|---|---|---|
| 1 | 2 | 3 | |
| Stop (OFF) | OFF | OFF | OFF |
| Low (LOW) | ON | OFF | OFF |
| Middle (MID) | OFF | ON | OFF |
| High (HI) | OFF | ON | ON |
