Component Parts Location

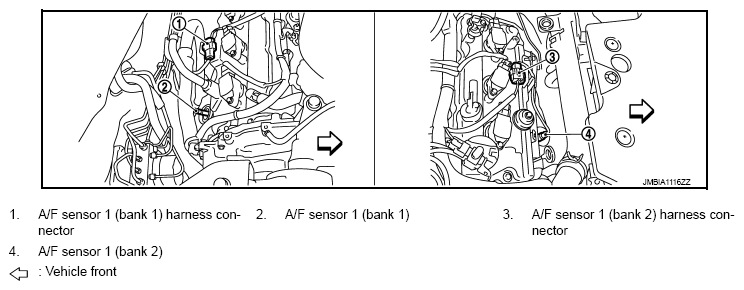

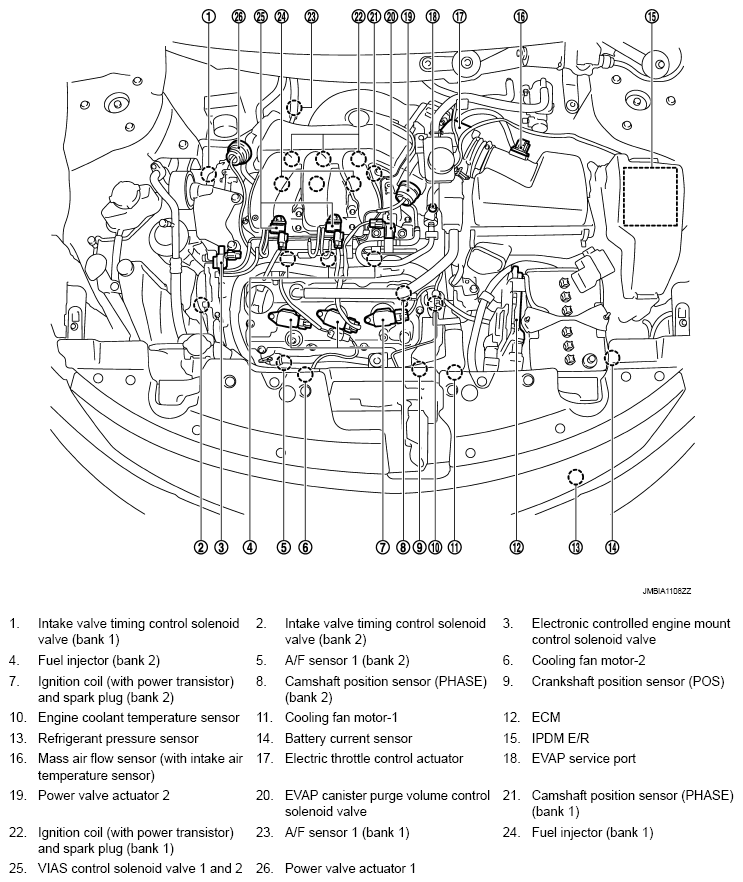

Fig 1: Location Of Electronic Controlled Engine Mount Components (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

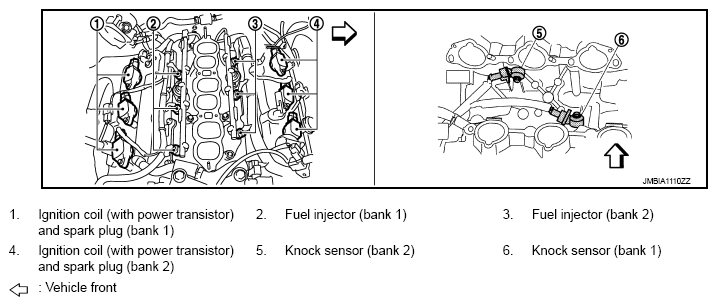

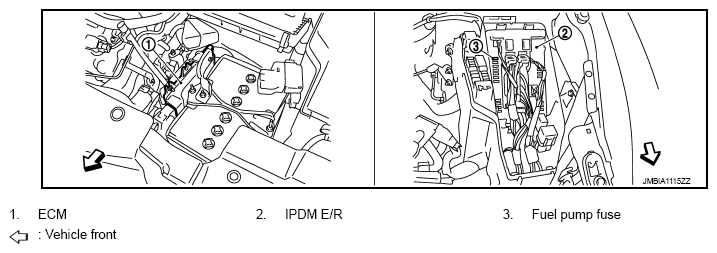

Fig 2: Location Of Electronic Controlled Engine Mount Components (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

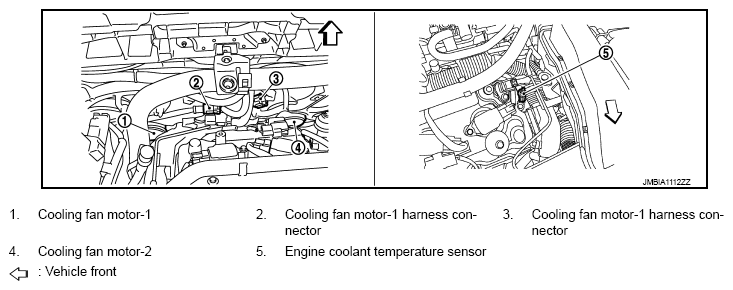

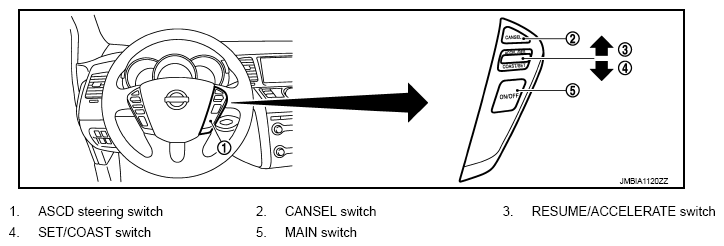

Fig 3: Location Of Electronic Controlled Engine Mount Components (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

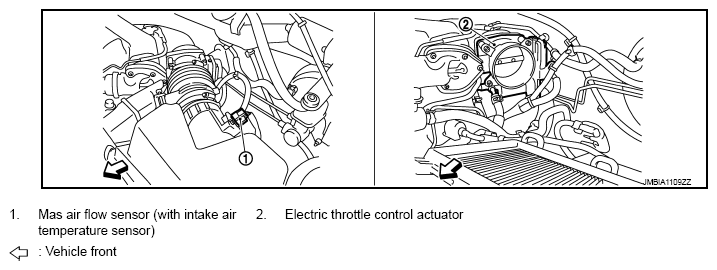

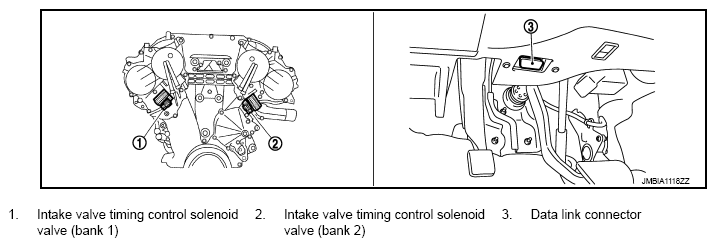

Fig 4: Location Of Electronic Controlled Engine Mount Components (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

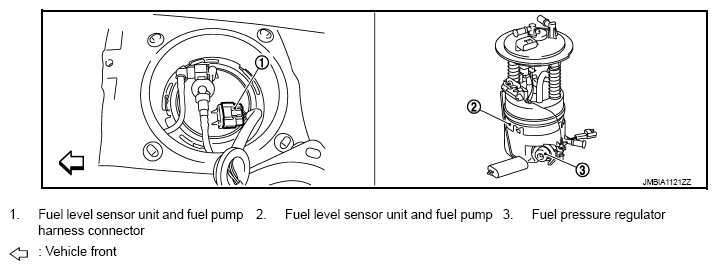

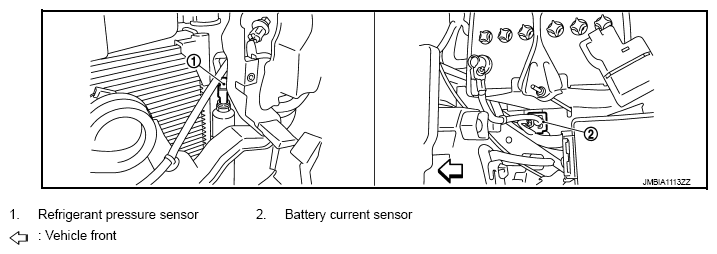

Fig 5: Location Of Electronic Controlled Engine Mount Components (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

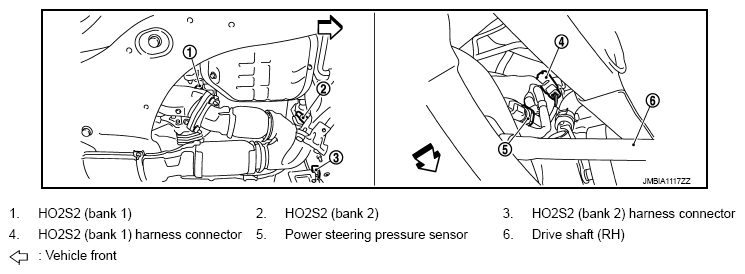

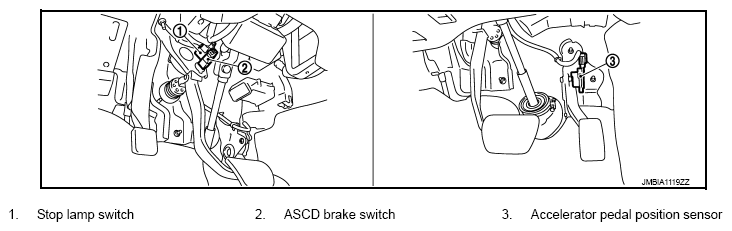

Fig 6: Location Of Electronic Controlled Engine Mount Components (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

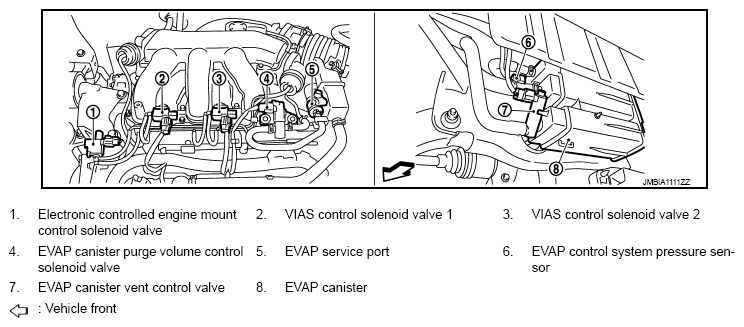

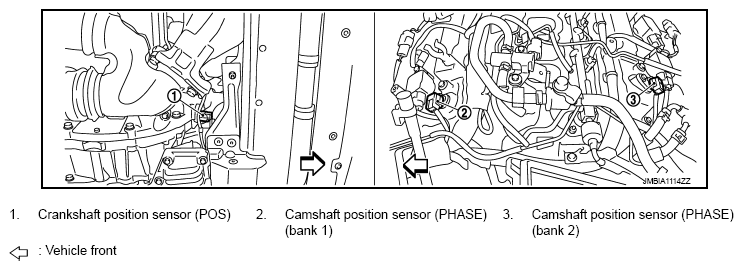

Fig 7: Location Of Electronic Controlled Engine Mount Components (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

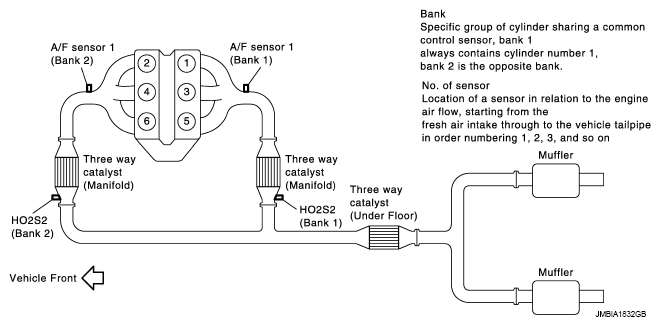

Fig 8: Location Of Electronic Controlled Engine Mount Components (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Location Of Electronic Controlled Engine Mount Components (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Location Of Electronic Controlled Engine Mount Components (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Location Of Electronic Controlled Engine Mount Components (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Location Of Electronic Controlled Engine Mount Components (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Location Of Electronic Controlled Engine Mount Components (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Location Of Electronic Controlled Engine Mount Components (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Location Of Electronic Controlled Engine Mount Components (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
