Component Parts Location

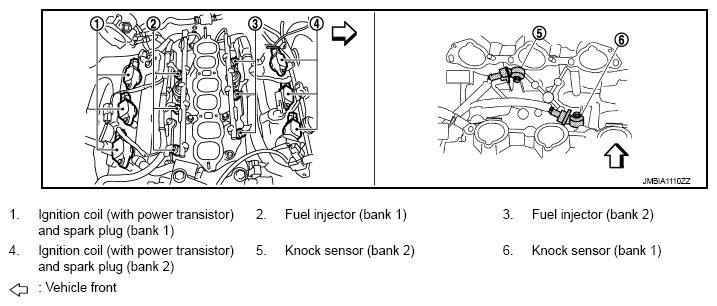

Fig 1: Location Of Electric Ignition Components (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

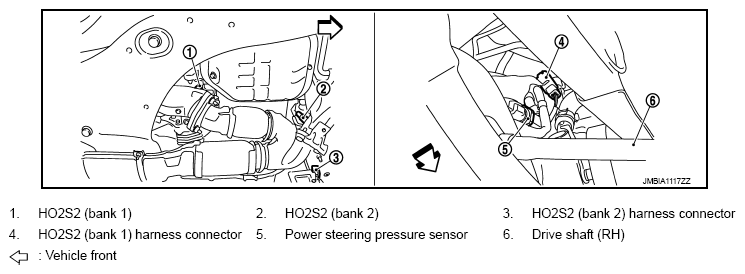

Fig 2: Location Of Electric Ignition Components (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

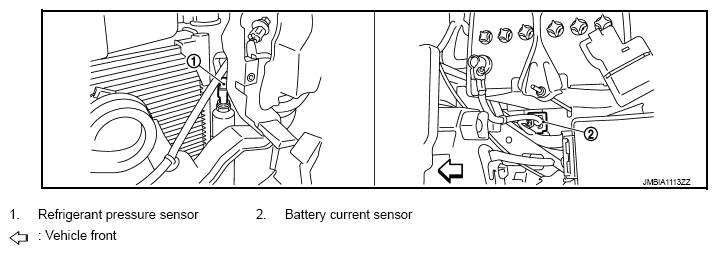

Fig 3: Location Of Electric Ignition Components (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

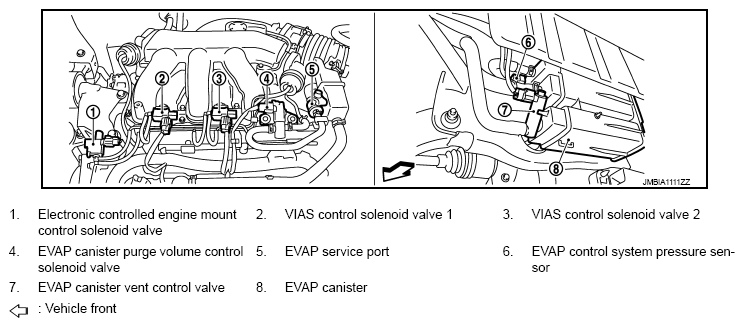

Fig 4: Location Of Electric Ignition Components (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

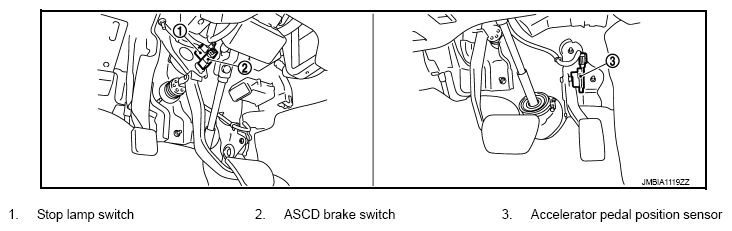

Fig 5: Location Of Electric Ignition Components (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

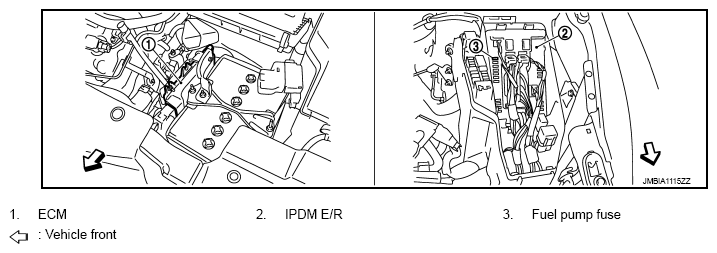

Fig 6: Location Of Electric Ignition Components (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

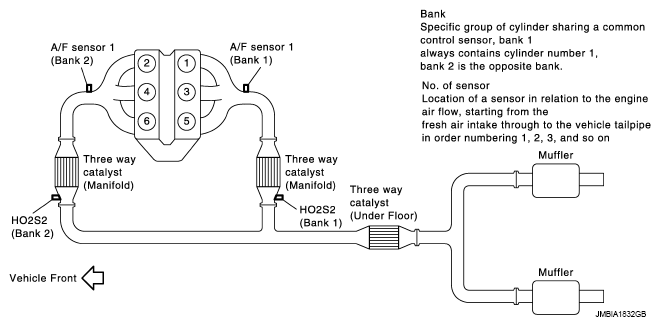

Fig 7: Location Of Electric Ignition Components (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Location Of Electric Ignition Components (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Location Of Electric Ignition Components (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Location Of Electric Ignition Components (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Location Of Electric Ignition Components (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Location Of Electric Ignition Components (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Location Of Electric Ignition Components (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Location Of Electric Ignition Components (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Location Of Electric Ignition Components (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
