Component Parts Location

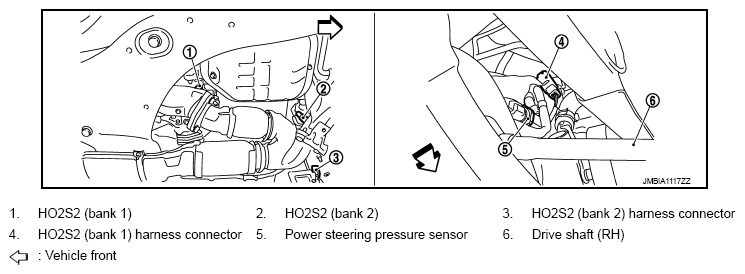

Fig 1: Location Of Cooling Fan Control Components (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

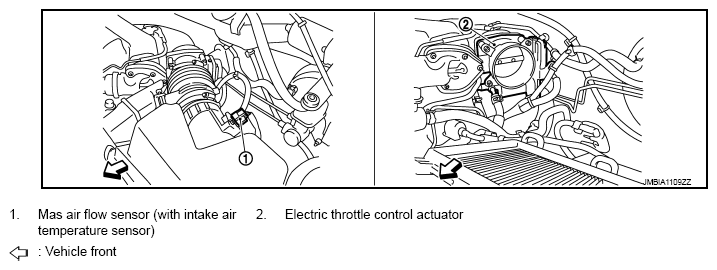

Fig 2: Location Of Cooling Fan Control Components (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

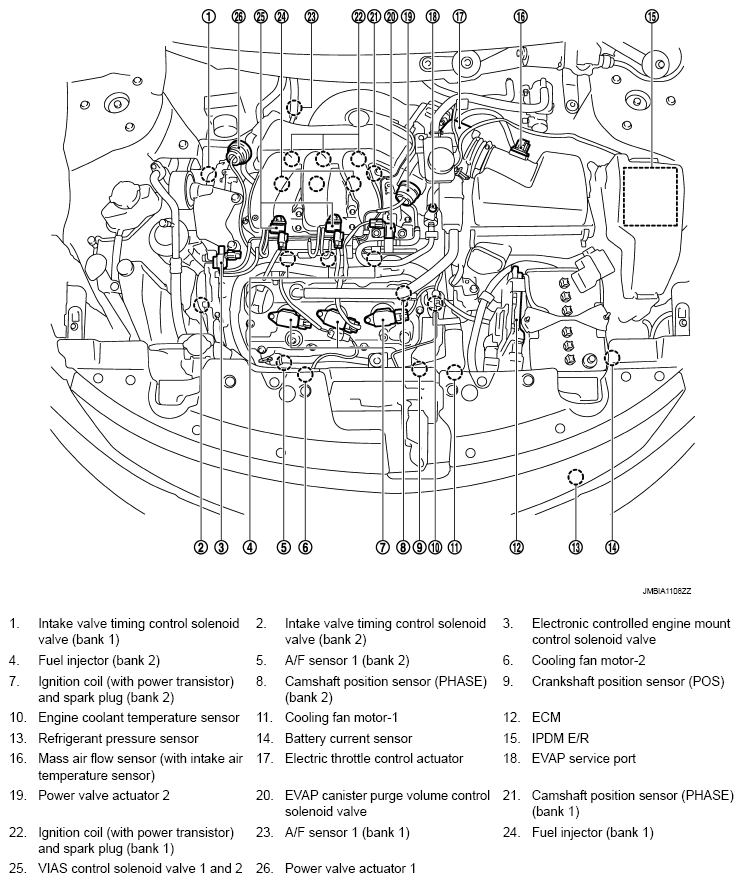

Fig 3: Location Of Cooling Fan Control Components (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

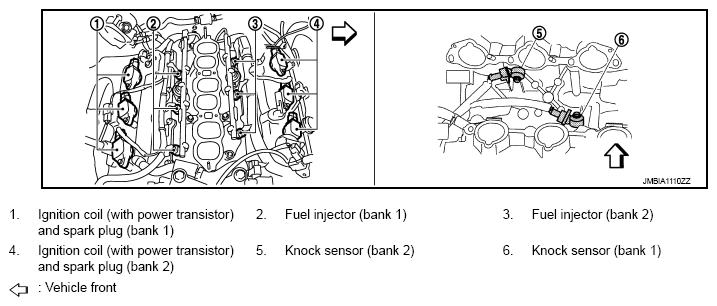

Fig 4: Location Of Cooling Fan Control Components (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

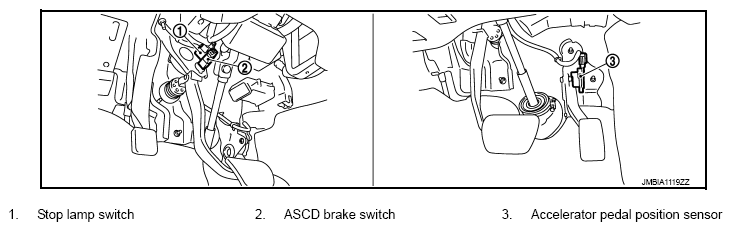

Fig 5: Location Of Cooling Fan Control Components (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

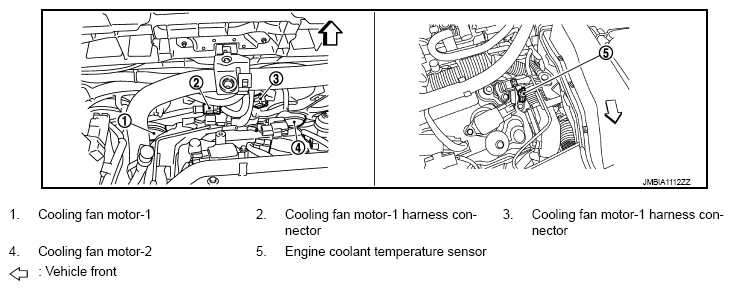

Fig 6: Location Of Cooling Fan Control Components (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

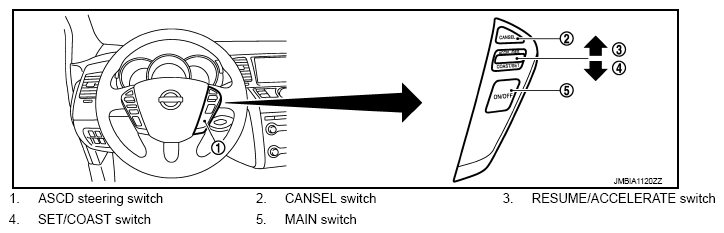

Fig 7: Location Of Cooling Fan Control Components (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

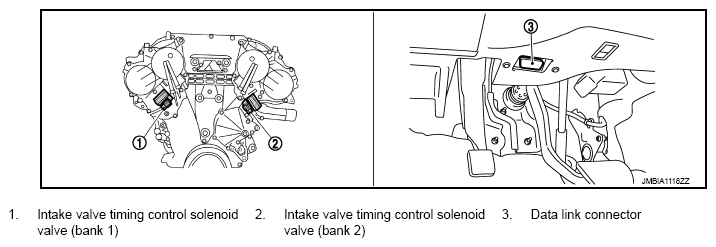

Fig 8: Location Of Cooling Fan Control Components (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

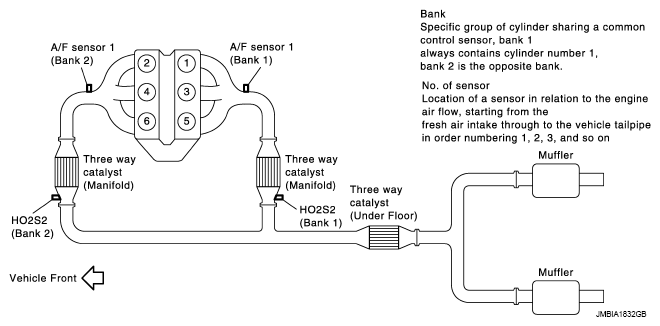

Fig 9: Location Of Cooling Fan Control Components (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

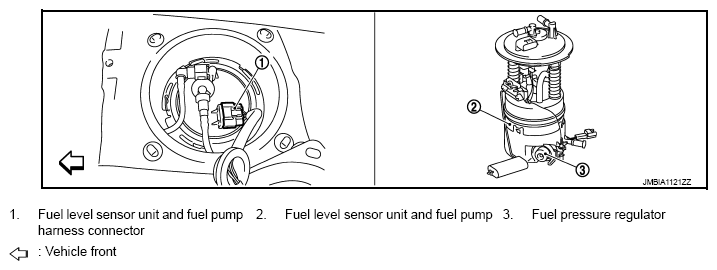

Fig 10: Location Of Cooling Fan Control Components (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

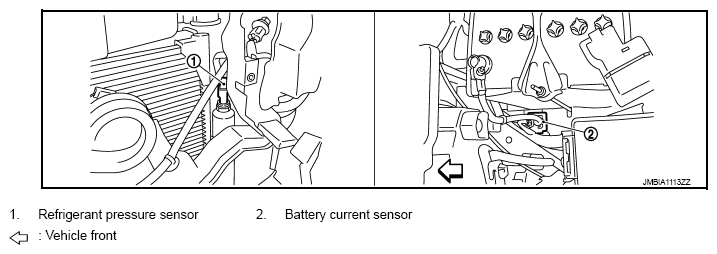

Fig 11: Location Of Cooling Fan Control Components (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

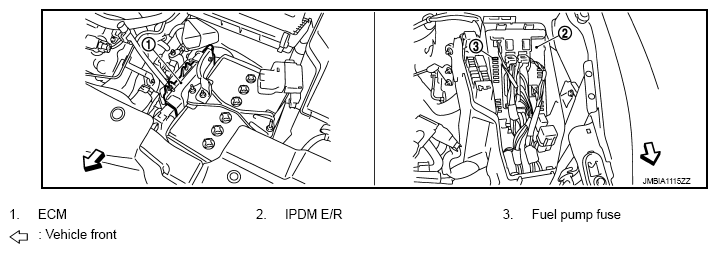

Fig 12: Location Of Cooling Fan Control Components (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

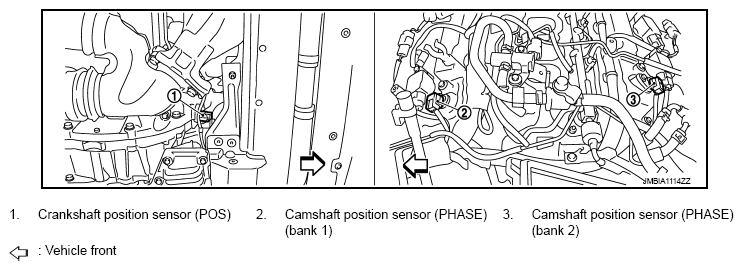

Fig 13: Location Of Cooling Fan Control Components (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

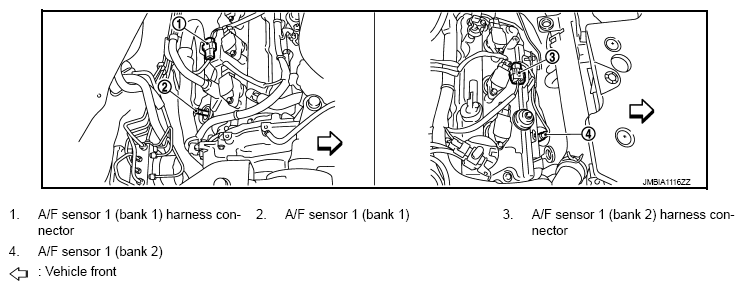

Fig 14: Location Of Cooling Fan Control Components (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

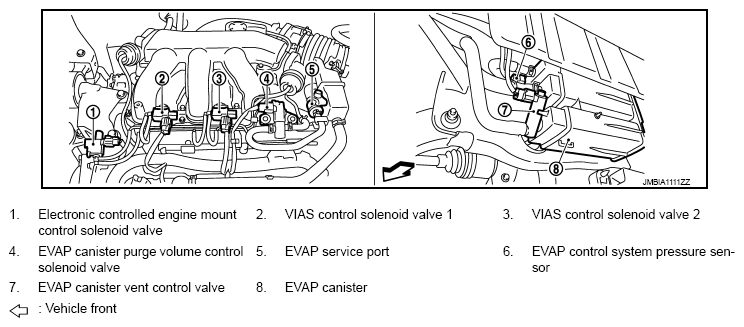

Fig 15: Location Of Cooling Fan Control Components (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
