Component Parts Location

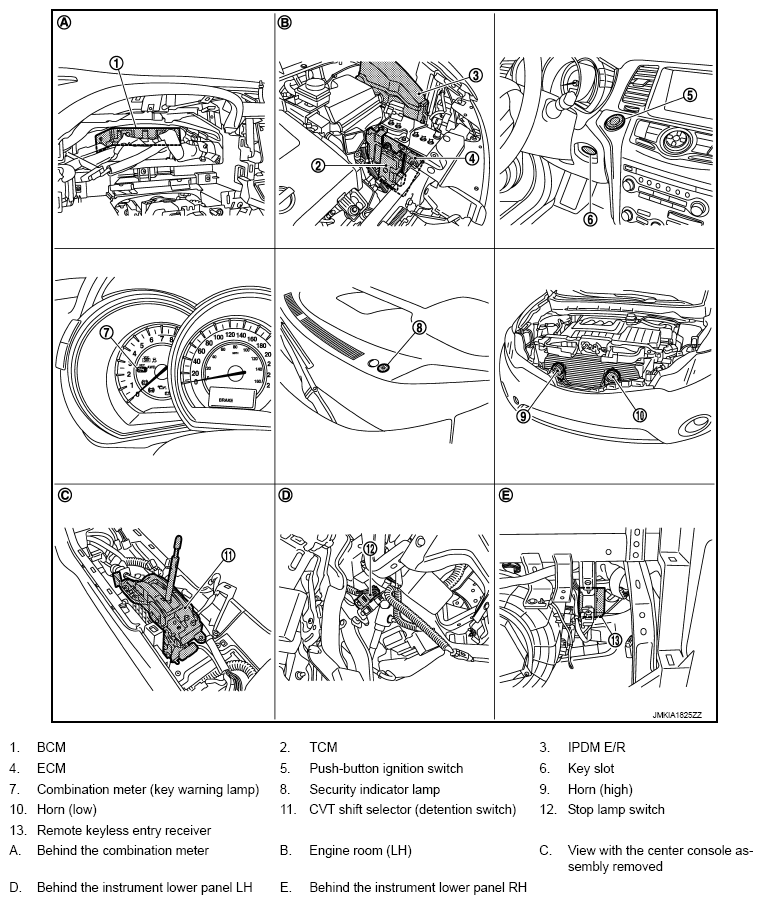

Fig 1: Identifying Intelligent Key System/Engine Start Function Component Parts Location (1 Of 2)
G07126291Courtesy of NISSAN MOTOR CO., U.S.A.

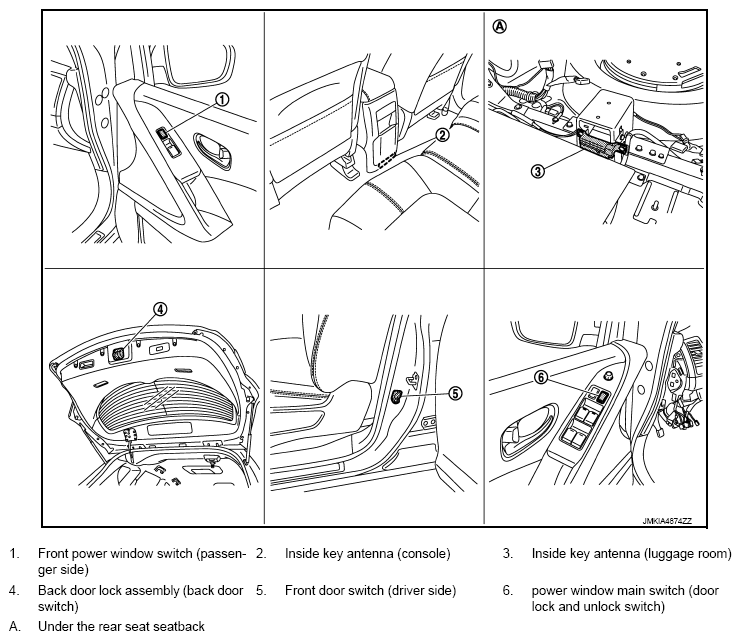

Fig 2: Identifying Intelligent Key System/Engine Start Function Component Parts Location (2 Of 2)
G07126292Courtesy of NISSAN MOTOR CO., U.S.A.
