Exploded View

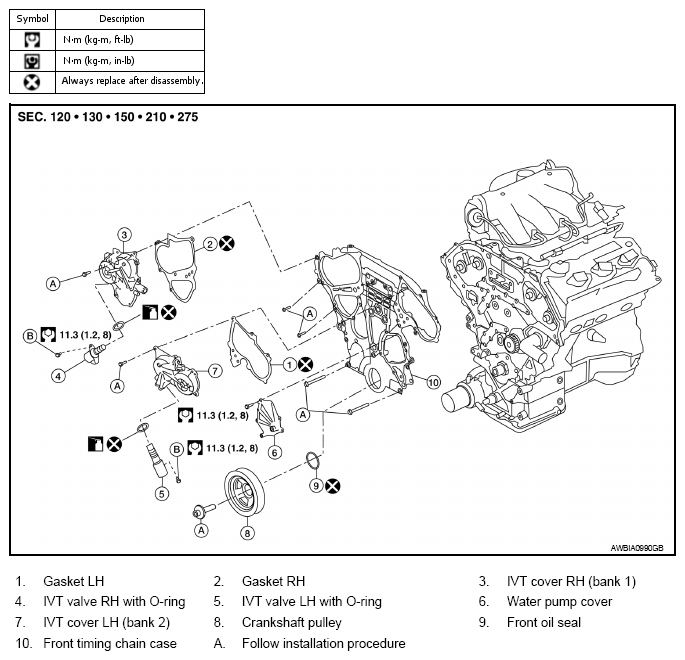

Fig 1: Exploded View Of Front Timing Chain Case With Torque Specifications

G06989493

Courtesy of NISSAN MOTOR CO., U.S.A.
