System Application

BCM can perform the following functions.

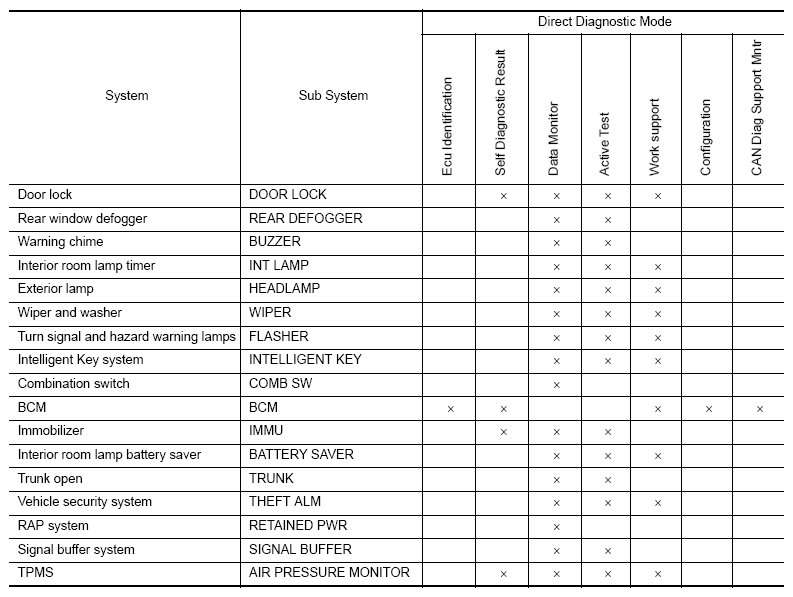

Fig 1: Identifying BCM Direct Diagnostic Mode Function Chart

G06993605

Courtesy of NISSAN MOTOR CO., U.S.A.
