System Description
>>
Power Window System
>>
Component Parts Location
Component Parts Location

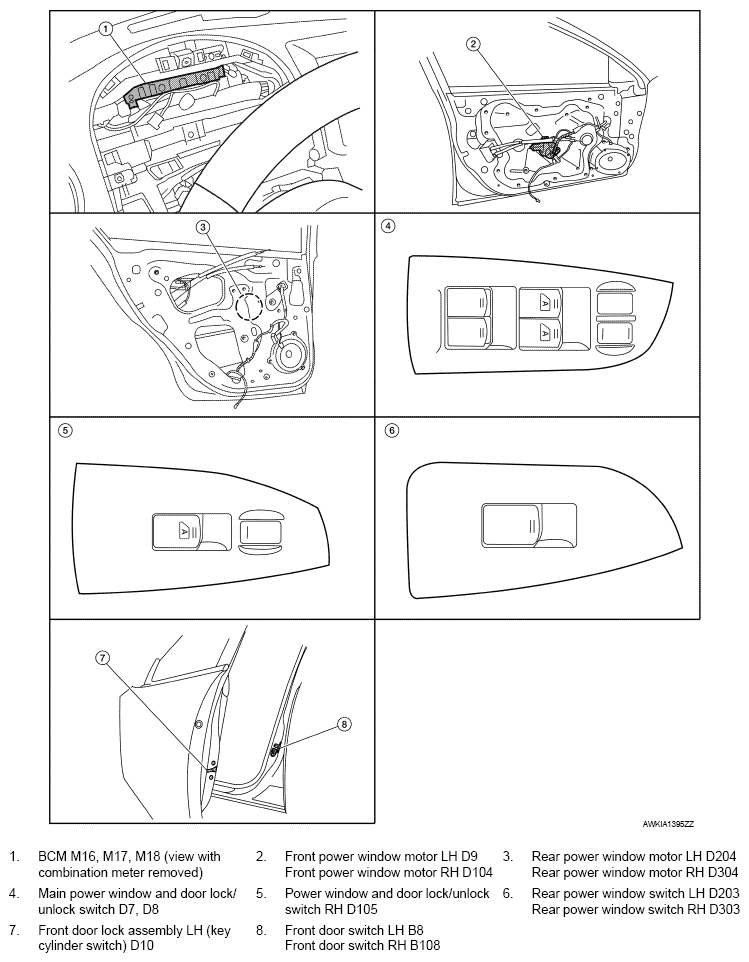

Fig 1: Identifying Power Window System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
