System Application

BCM can perform the following functions.

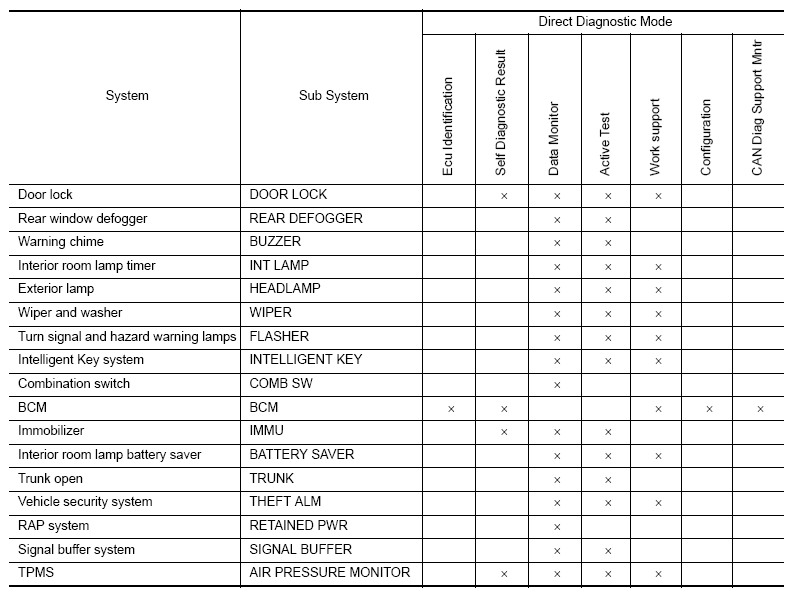

Fig 1: Identifying BCM System Application

G06991769

Courtesy of NISSAN MOTOR CO., U.S.A.
