Engine Compartment

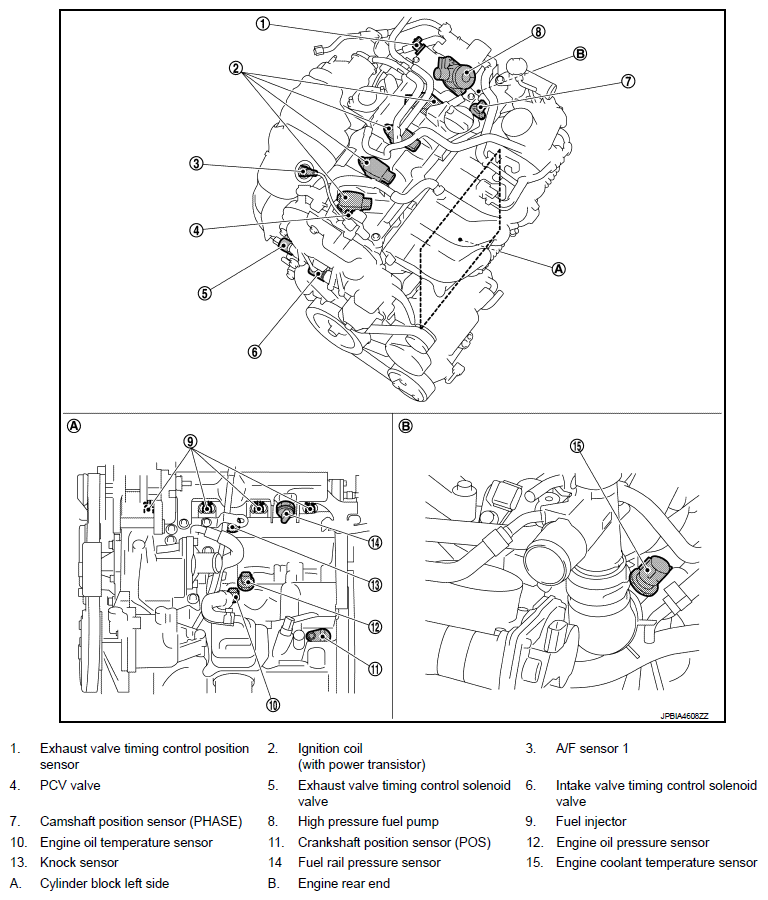

Fig 1: Identifying Engine Control System Components - Engine Compartment

G06932857

Courtesy of NISSAN MOTOR CO., U.S.A.
