System - Engine Mechanical & Other

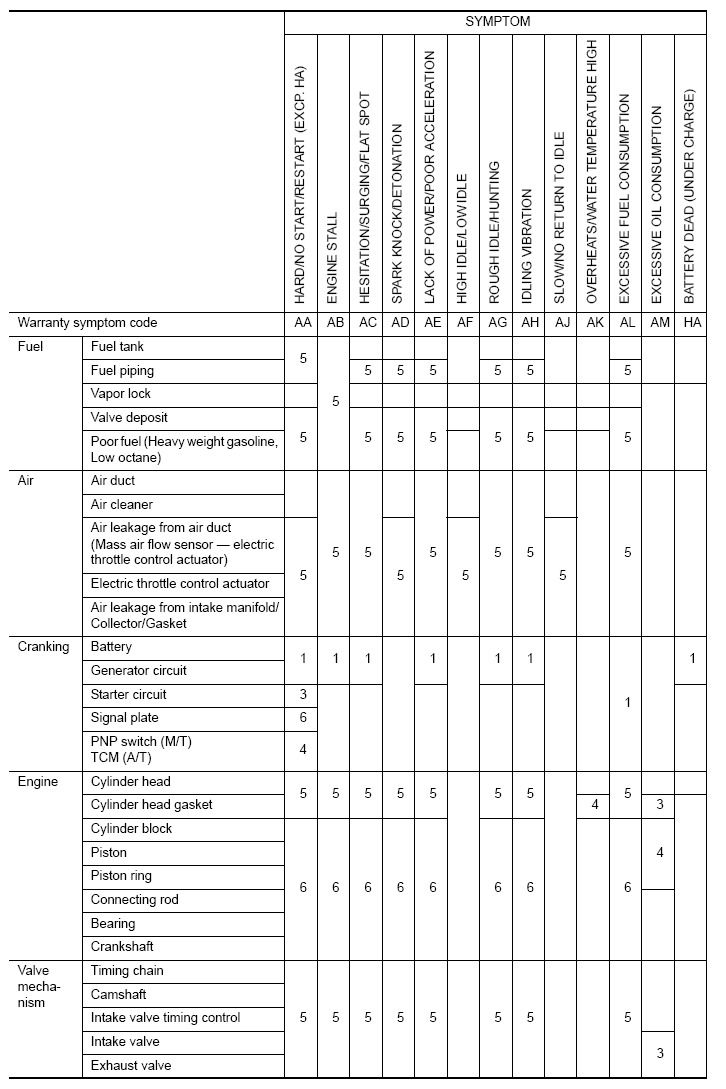

Fig 1: Engine Control System Symptoms Matrix Chart - Engine Mechanical & Other (1 Of 2)
G07121515Courtesy of NISSAN MOTOR CO., U.S.A.

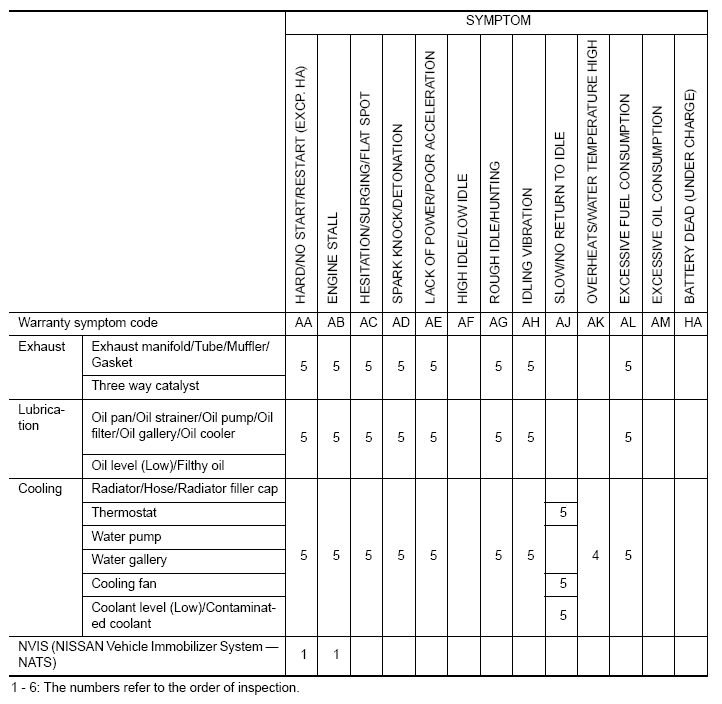

Fig 2: Engine Control System Symptoms Matrix Chart - Engine Mechanical & Other (2 Of 2)
G07121516Courtesy of NISSAN MOTOR CO., U.S.A.
