Disassembly and Assembly: Notes

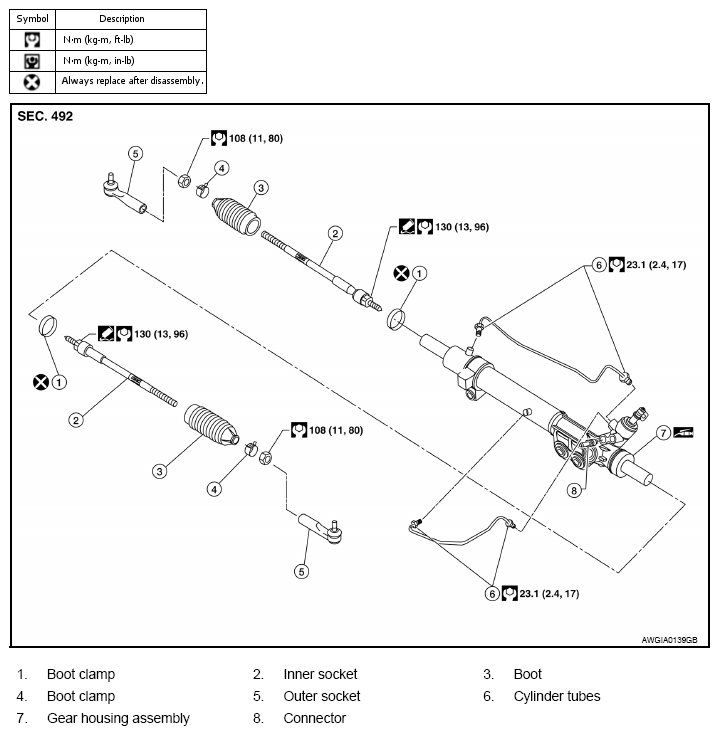

Fig 1: Exploded View Of Steering Gear & Linkage With Torque Specifications
G07120202Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from being damaged. Do not grip the cylinder with a vise.
  • Before performing disassembly, clean the gear housing assembly. Be careful not to allow any cleaner to contact the discharge and return port connectors.
