Component Part Location

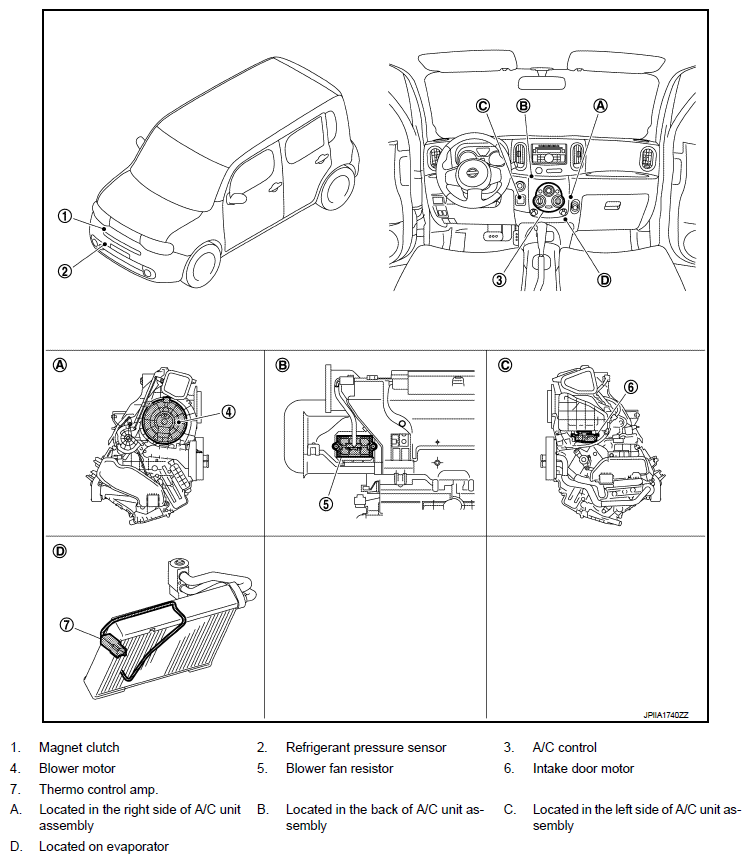

Fig 1: Identifying Compressor Control Component Part Location

G07105124

Courtesy of NISSAN MOTOR CO., U.S.A.
