Service Information
>>
Front Drive Shaft
>>
Disassembly and Assembly (Left Side)
>>
Notes
Disassembly and Assembly (Left Side): Notes

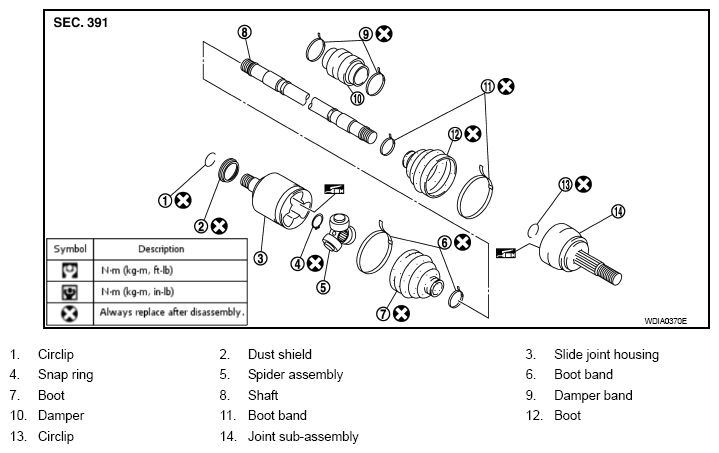

Fig 1: Identifying Spider Assembly, Slide Joint Housing, Boot Band And Circlip
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
