System - Engine Mechanical & Other

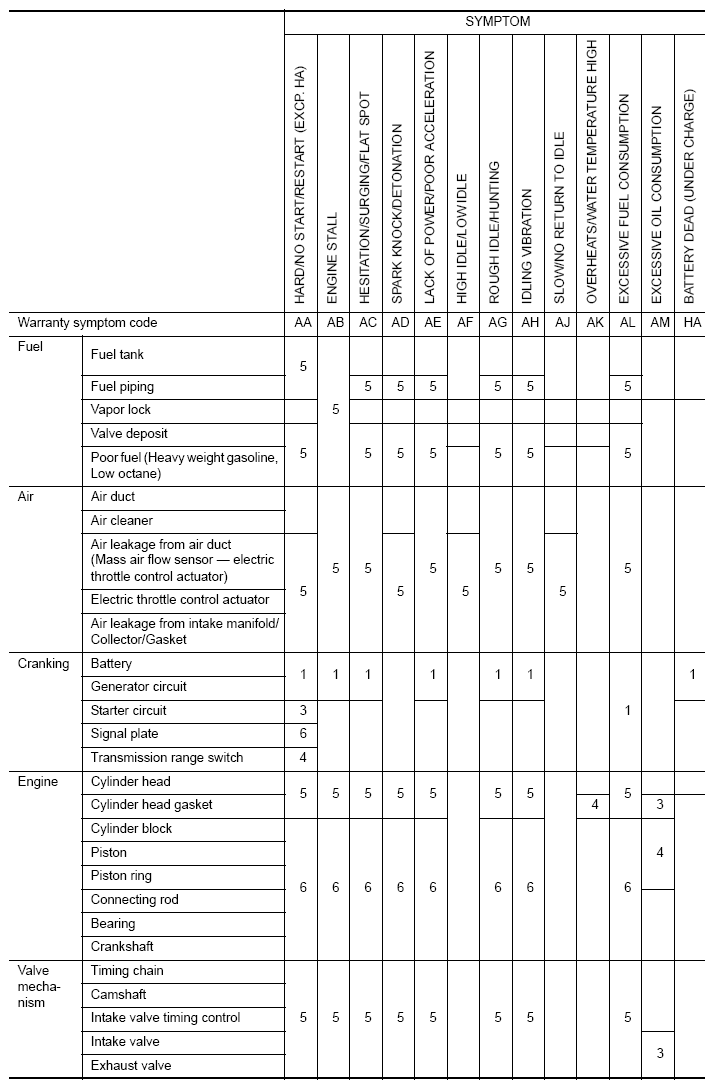

Fig 1: Engine Mechanical And Other Symptom Chart (1 Of 2)
G06584308Courtesy of NISSAN MOTOR CO., U.S.A.

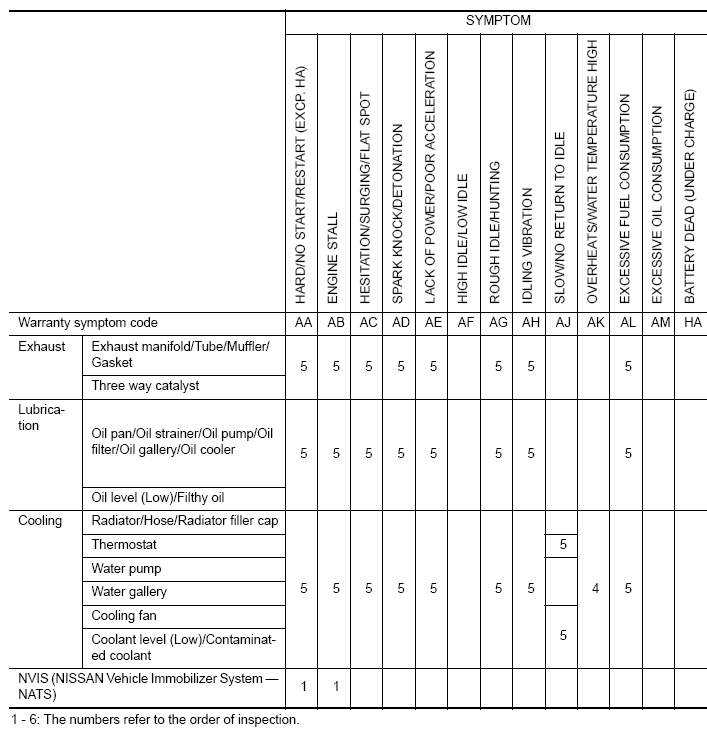

Fig 2: Engine Mechanical And Other Symptom Chart (2 Of 2)
G06584309Courtesy of NISSAN MOTOR CO., U.S.A.
