Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

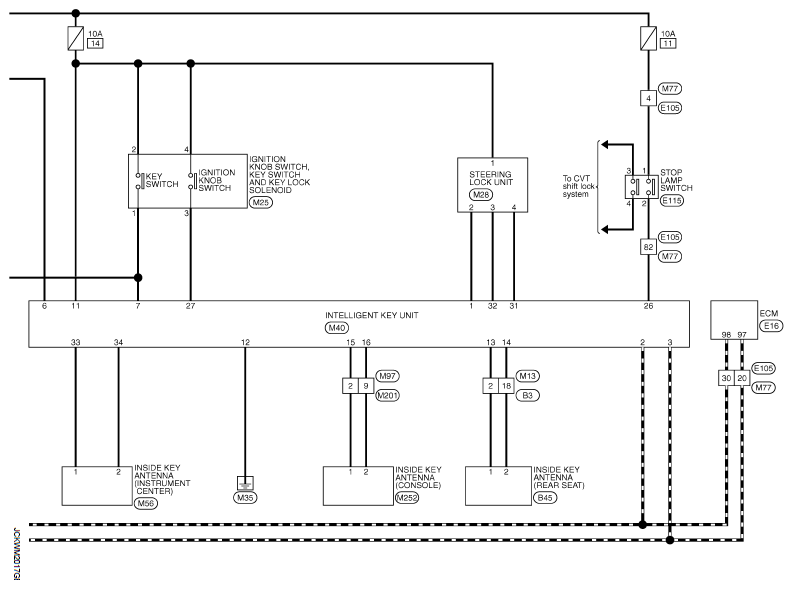

Fig 1: Intelligent Key System/Engine Start Function - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

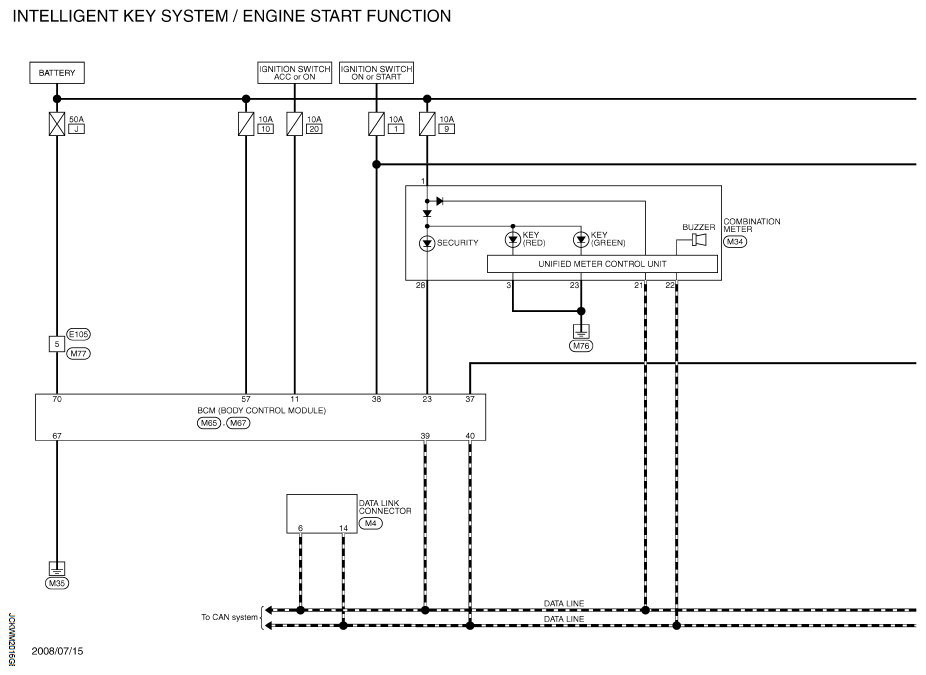

Fig 2: Intelligent Key System/Engine Start Function - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

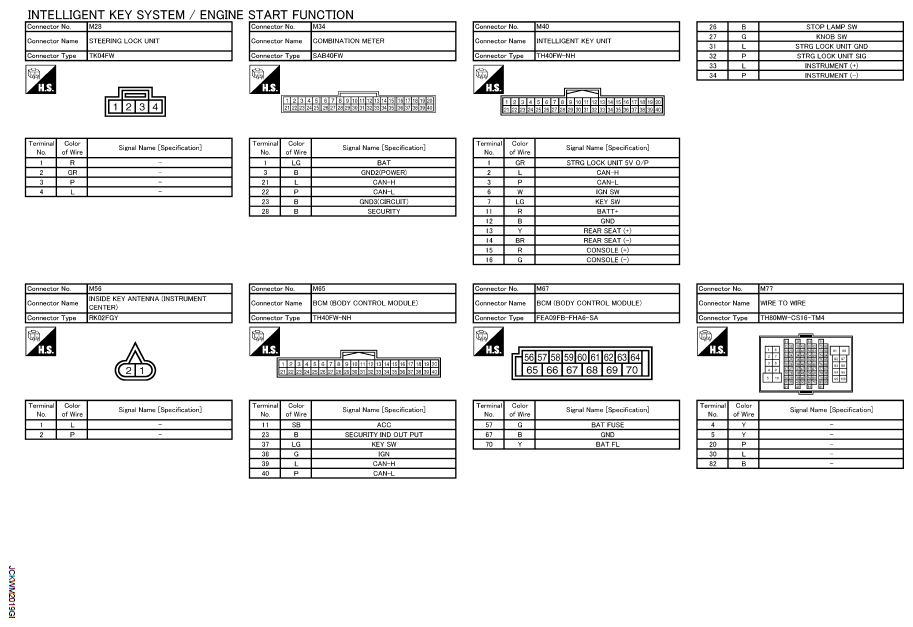

Fig 3: Intelligent Key System/Engine Start Function Connectors Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

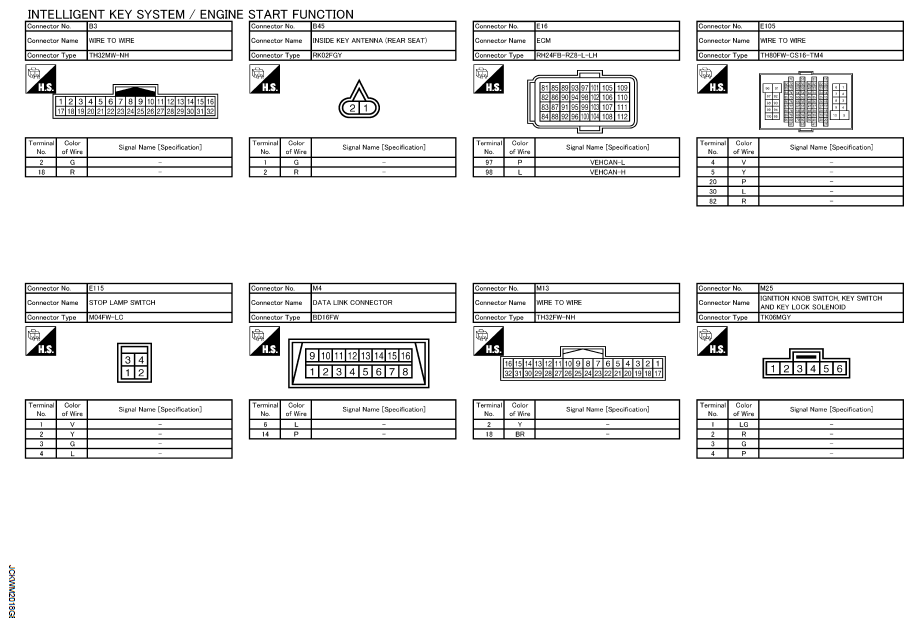

Fig 4: Intelligent Key System/Engine Start Function Connectors Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

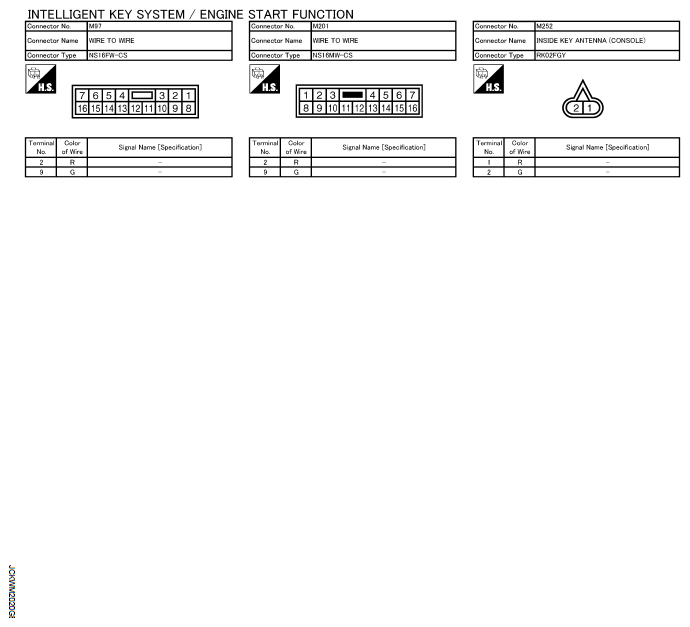

Fig 5: Intelligent Key System/Engine Start Function Connectors Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
