System Diagram

WARNING: This page is about a different car, the 2009 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

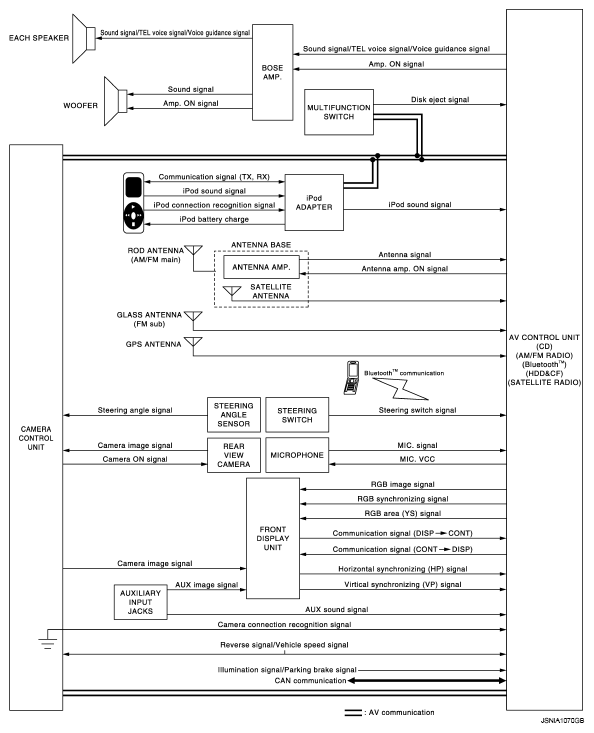

Fig 1: Multi AV System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Woofer, illustrated in the above figure, integrates two woofers and a woofer amp.
In this section, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION SWITCH.

A radio antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.

Fig 2: Radio And Satellite Radio Antenna System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
