System Diagram

WARNING: This page is about a different car, the 2009 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

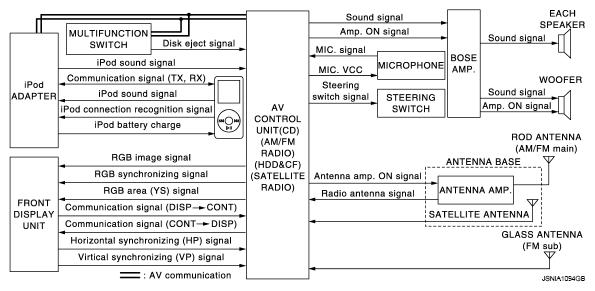

Fig 1: Audio System Diagram
G05891769Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Woofer, illustrated in the above figure, integrates two woofers and a woofer amp.
  • The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
  • A radio antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Fig 2: Radio And Satellite Radio Antenna System Diagram
G05731530Courtesy of NISSAN MOTOR CO., U.S.A.
