Home >> Nissan-Datsun >> 2010 >> Frontier XE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Component Testing (Qr25DE) >> Symptom Diagnosis >> Engine Control System Symptoms >> Symptom Matrix Chart >> System - Engine Mechanical&Other

System - Engine Mechanical&Other

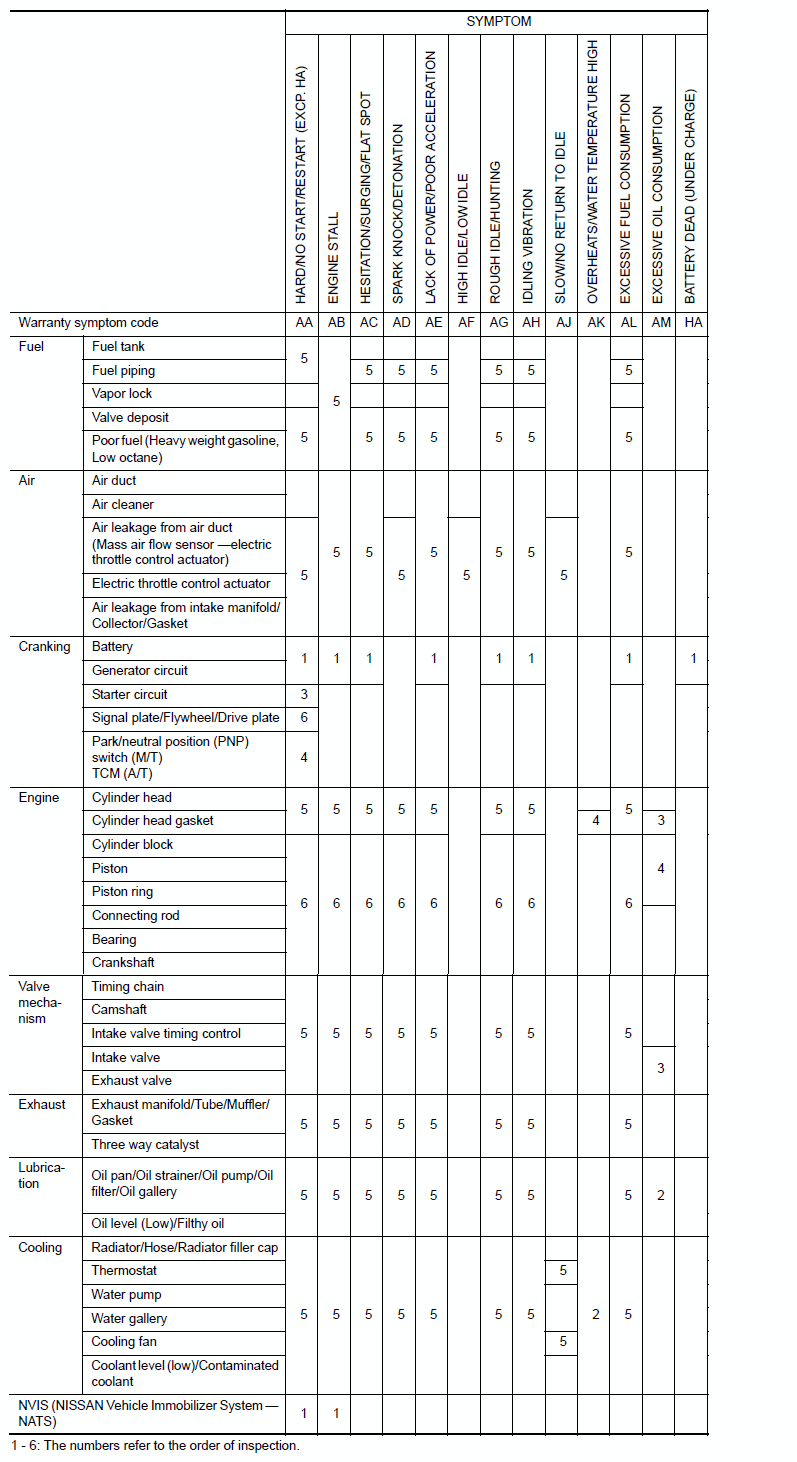

Fig 1: Symptom Matrix Chart - Engine Mechanical&Other

G06641887

Courtesy of NISSAN MOTOR CO., U.S.A.
