Component Parts Location

WARNING: This page is about a different car, the 2009 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

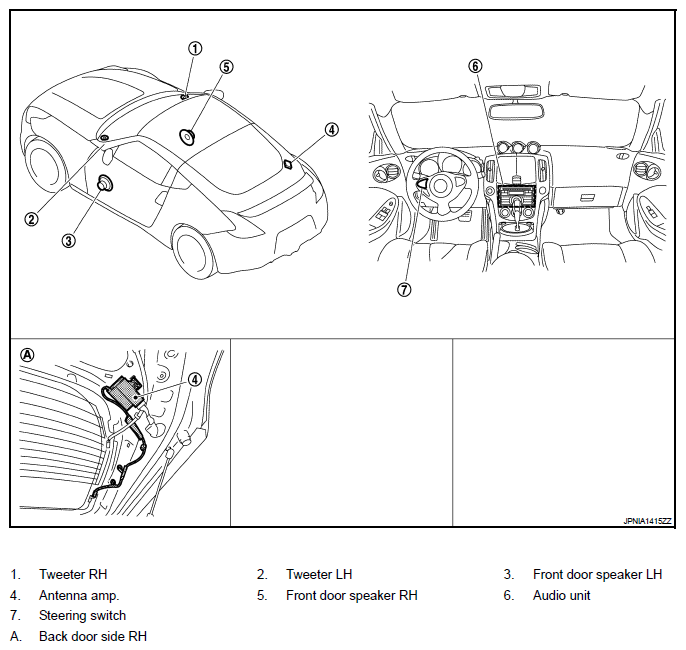

Fig 1: Identifying Audio System Component Parts Location
G06051263Courtesy of NISSAN MOTOR CO., U.S.A.
