Exploded View

WARNING: This page is about a different car, the 2009 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

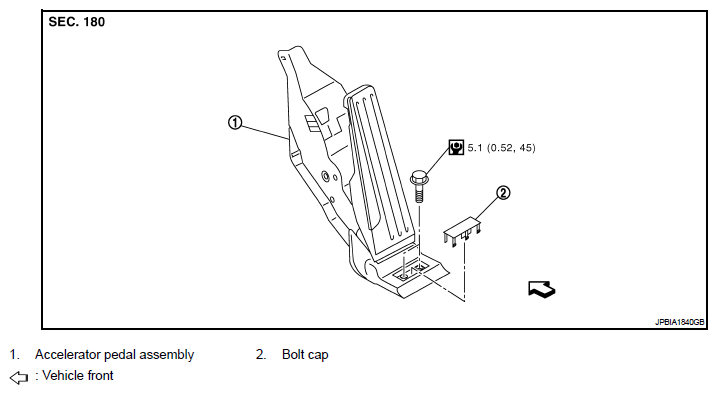

Fig 1: Identifying Accelerator Control System Components
G06051827Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
