Procedure A
- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect IPDM E/R harness connector E44.
- Check voltage between IPDM E/R terminal 22 and ground with CONSULT-III or tester.
Voltage: Battery voltage
OK or NG
OK : GO TO 3.
NG : GO TO 2.
- DETECT MALFUNCTIONING PART
Check the following.
- 50A fusible link
- Harness for open or short between IPDM E/R and battery
Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR CIRCUIT

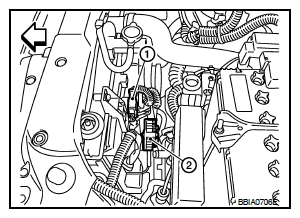

- Disconnect cooling fan motor harness connector (1).
- <== : Vehicle front
- Resistor (2)
- Disconnect IPDM E/R harness connectors E46 and E48.
- Check harness continuity between the following;
cooling fan motor terminal 1 and IPDM E/R terminal 24,
cooling fan motor terminal 2 and ground.
Refer to wiring diagram.
Continuity should exist .
- Also check harness for short to ground and short to power.
- Check harness continuity between IPDM E/R terminal 20 and cooling fan motor terminal 1.
Refer to wiring diagram.
Continuity should exist .
- Also check harness for short to ground and short to power.
- Check harness continuity between IPDM E/R terminals 39, 59 and ground.
Refer to Wiring Diagram.
Continuity should exist .
- Also check harness for short to ground and short to power.
OK or NG
OK : GO TO 5.
NG : GO TO 4.
- Disconnect cooling fan motor harness connector (1).
- DETECT MALFUNCTIONING PART
Check the following.
- Harness for open or short between cooling fan motor and IPDM E/R
- Harness for open or short between cooling fan motor and ground
- Resistor E5
Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR
Refer to "COMPONENT INSPECTION ".
OK or NG
OK : GO TO 6.
NG : Replace cooling fan motor.
- CHECK INTERMITTENT INCIDENT
Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
OK or NG
OK : Replace IPDM E/R. Refer to REMOVAL AND INSTALLATION OF IPDM E/R .
NG : Repair or replace harness or connector.
