Diagnosis Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground screw on the body.

      Refer to "GROUND INSPECTION ".

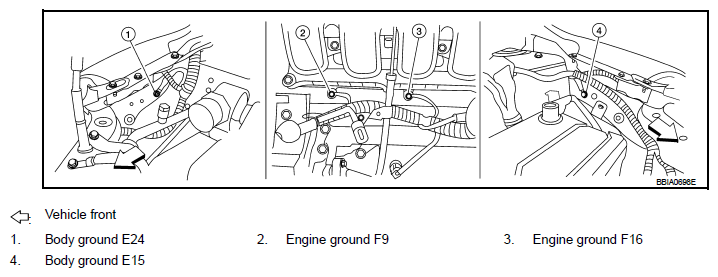

      Fig 1: Identifying Ground Connections Components
      G05932636Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK : GO TO 2.

      NG : Repair or replace ground connections.

  2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Disconnect A/F sensor 1 harness connector (1).
      2. Fig 2: Identifying A/F Sensor 1 Harness Connector
      G05932637Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Turn ignition switch ON.
    3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-III or tester.

      Voltage: Battery voltage

      OK or NG

      OK : GO TO  4.

      NG : GO TO 3.

      Fig 3: Checking Voltage Between A/F Sensor 1 Terminal 4 And Ground
      G05932638Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness for open or short between A/F sensor 1 and fuse

      Repair or replace harness or connectors.

  4. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
      CONTINUITY REFERENCE CHART

      A/F sensor 1 terminal ECM terminal
      1 49
      2 53

      Continuity should exist  .

    4. Check harness continuity between ECM terminals 49, 53 or A/F sensor 1 terminals 1, 2 and ground.

      Refer to Wiring Diagram.

      Continuity should not exist  .

    5. Also check harness for short to power.

      OK or NG

      OK : GO TO 5.

      NG : Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK INTERMITTENT INCIDENT

    Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    OK or NG

    OK : GO TO 6.

    NG : Repair or replace.

  6. REPLACE AIR FUEL RATIO (A/F) SENSOR 1

    Replace air fuel ratio (A/F) sensor 1.

    CAUTION:
    • Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

    INSPECTION END
