DTC P1217 Engine Over Temperature: Wiring Diagram

NOTE: For references to "PG-Power", see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article.

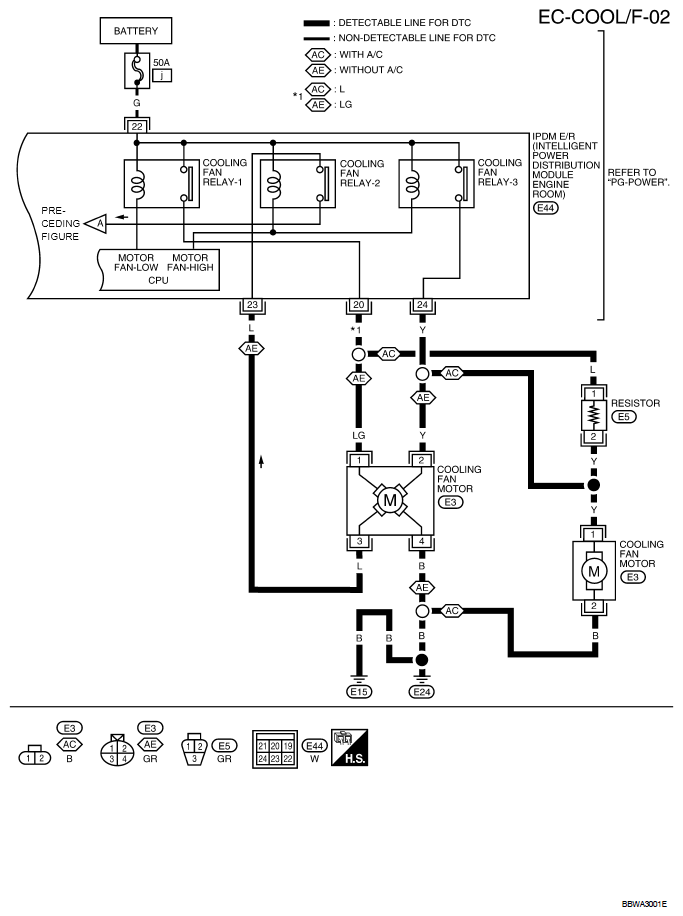

Fig 1: Engine Over Temperature - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

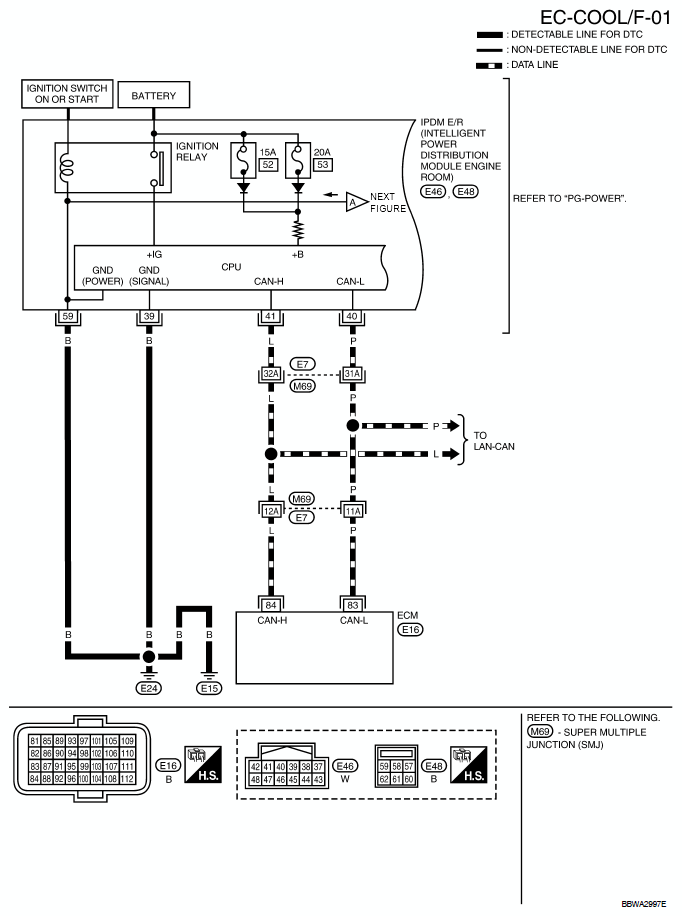

Fig 2: Engine Over Temperature - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
