Component Description

When the selector lever position is P or N (CVT), Neutral (M/T), park/neutral position (PNP) switch is ON. ECM detects the position because the continuity of the line (the ON signal) exists.

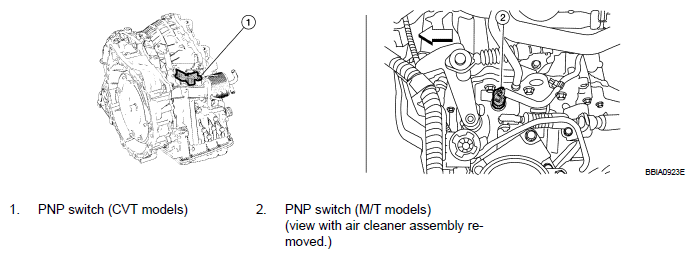

Fig 1: Identifying PNP Switch (CVT) And (M/T) Model

Courtesy of NISSAN MOTOR CO., U.S.A.
