Wiring Diagram - KEYLES -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Fig 1: BL-KEYLESS - 01 - Wiring Diagram
G04927589Courtesy of NISSAN MOTOR CO., U.S.A.

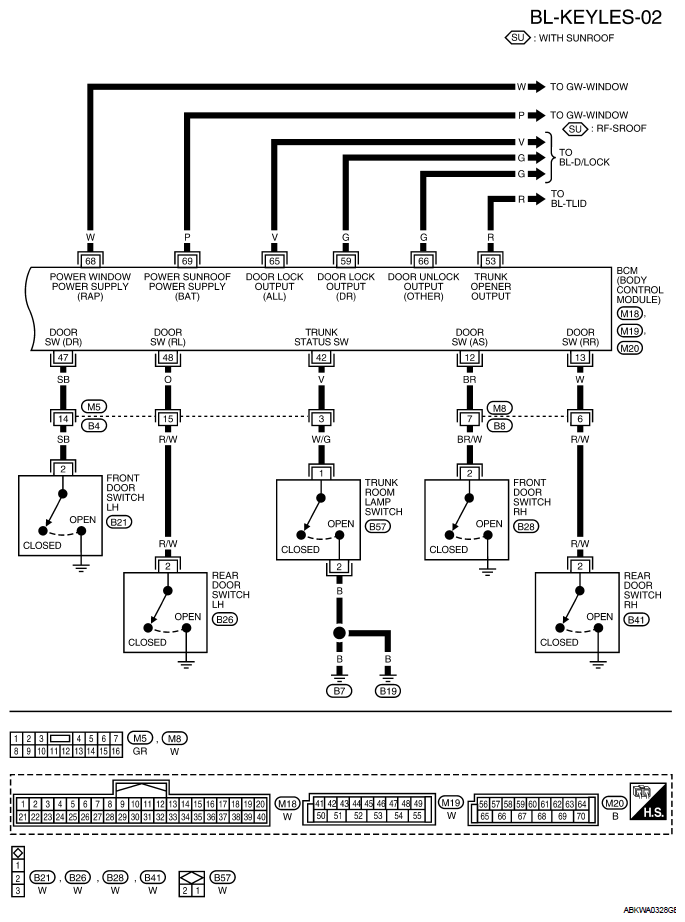

Fig 2: BL-KEYLESS - 02 - Wiring Diagram
G05924629Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: BL-KEYLESS - 03 - Wiring Diagram
G04927591Courtesy of NISSAN MOTOR CO., U.S.A.
