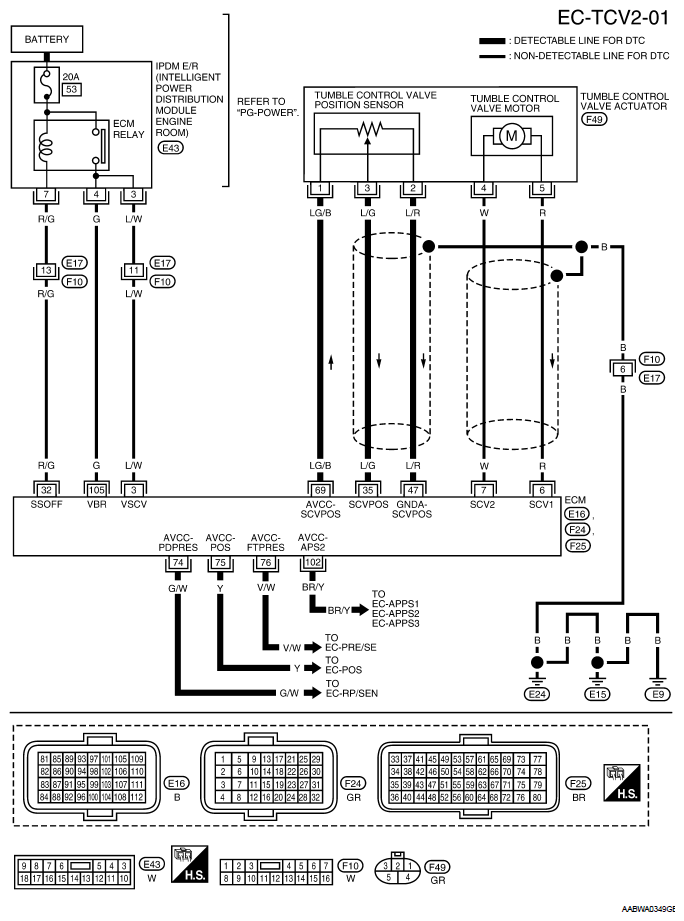

DTC P2014 Tumble Control Valve Position Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
CONNECTOR TERMINAL REFERENCE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 3 | L/W | Tumble control vale motor power supply | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) |
| 6 | R | Tumble control valve motor (Open) | [Ignition switch: ON → OFF]
|
0V ↓ BATTERY VOLTAGE (11 - 14V) ↓ 0V |
| 7 | W | Tumble control valve motor (Close) | [Ignition switch: OFF → ON]
|
0V ↓ BATTERY VOLTAGE (11 - 14V) ↓ 0V |
| 35 | L/G | Tumble control valve position sensor | [Engine is running]
|
Less than 1.2V |
[Engine is running]
|
More than 2.9V | |||
| 47 | L/R | Sensor ground (Tumble control valve position sensor) | [Engine is running]
|
Approximately 0V |
| 69 | LG/B | Sensor power supply (Tumble control valve position sensor) | [Ignition switch: ON] | Approximately 5V |
| 74 | G/W | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 75 | Y | Sensor power supply [Crankshaft position sensor (POS)] | [Ignition switch: ON] | Approximately 5V |
| 76 | V/W | EVAP control system pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 102 | BR/Y | Sensor power supply (Accelerator pedal position sensor 2) | [Ignition switch: ON] | Approximately 5V |
| *: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) | ||||
