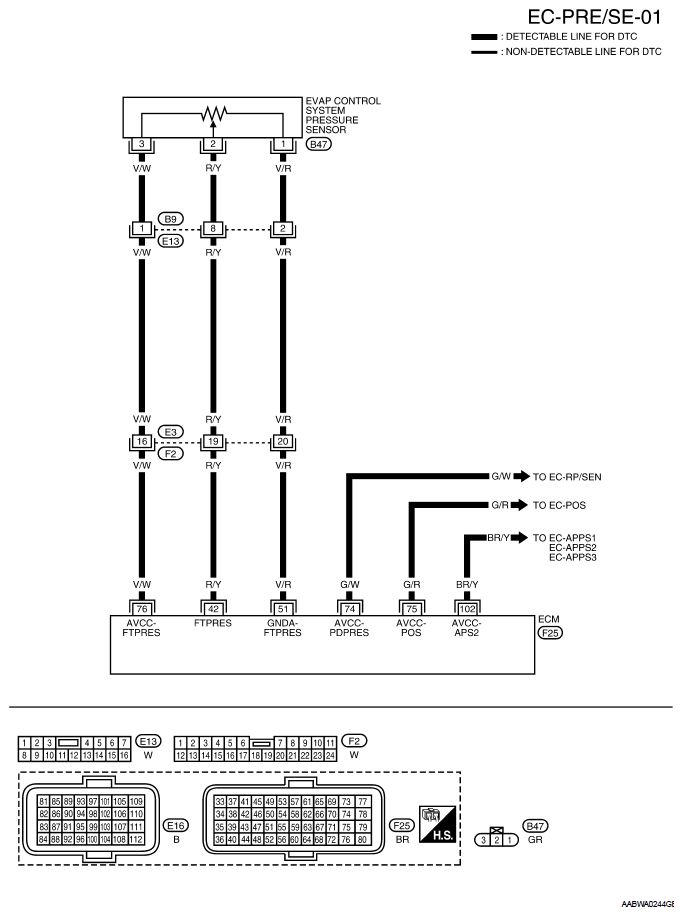

DTC P0452 EVAP Control System Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINAL VOLTAGE REFERENCE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 42 | R/Y | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V |
| 51 | V/R | Sensor ground (EVAP control system pressure sensor) |
[Engine is running]
|
Approximately 0V |
| 74 | G/W | Sensor power supply (Refrigerant pressure sensor) |
[Ignition switch: ON] | Approximately 5V |
| 75 | G/R | Sensor power supply [Crankshaft position sensor (POS)] |
[Ignition switch: ON] | Approximately 5V |
| 76 | V/W | EVAP control system pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 102 | BR/Y | Sensor power supply (APP sensor 2) |
[Ignition switch: ON] | Approximately 5V |
