FRONT WHEEL SENSOR : Exploded View

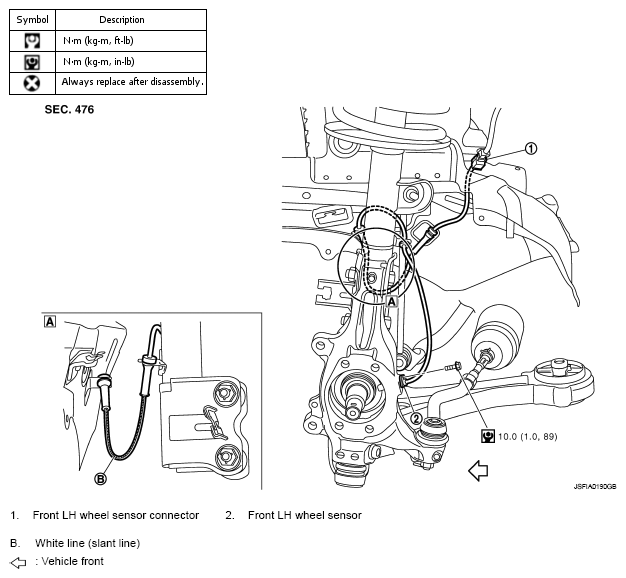

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specification
G05893188Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol in the figure.

NOTE: In Fig 1 (front side) shows left side. Right side is the mirror image.
