Exploded View

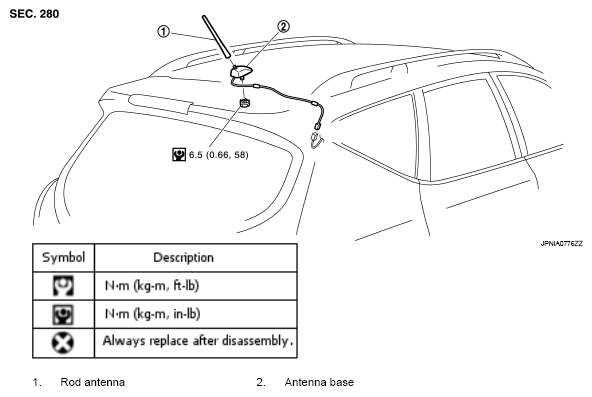

Fig 1: Identifying Roof Antenna Components

G05891188

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
