Nissan-Datsun
>>
2009
>>
Murano LE
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System, Visual System, Navigation System
>>
BOSE Audio With Navigation
>>
Function Diagnosis
>>
Rear View Monitor System
>>
System Diagram
System Diagram

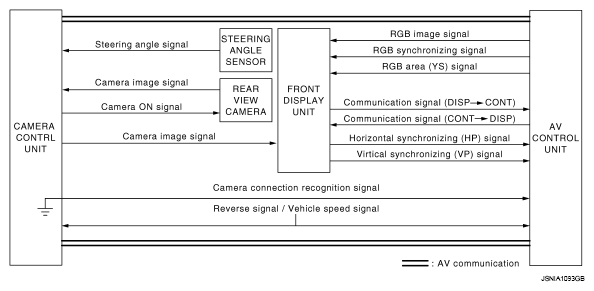

Fig 1: Rear View Monitor System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
