Passenger Compartment Fuse Block/Junction Box & Relays

Passenger compartment fuse box is located beneath the instrument panel to the left of the steering column, refer toFig 1 through Fig 3 .

The fuse box contains fuses "1" through "22", for numbering scheme, see Fig 3.

For fuses "31" through "60" and fusible links "A" through "M", refer to UNDERHOOD FUSIBLE LINKS, FUSES & RELAYS .

For relays refer to RELAYS .

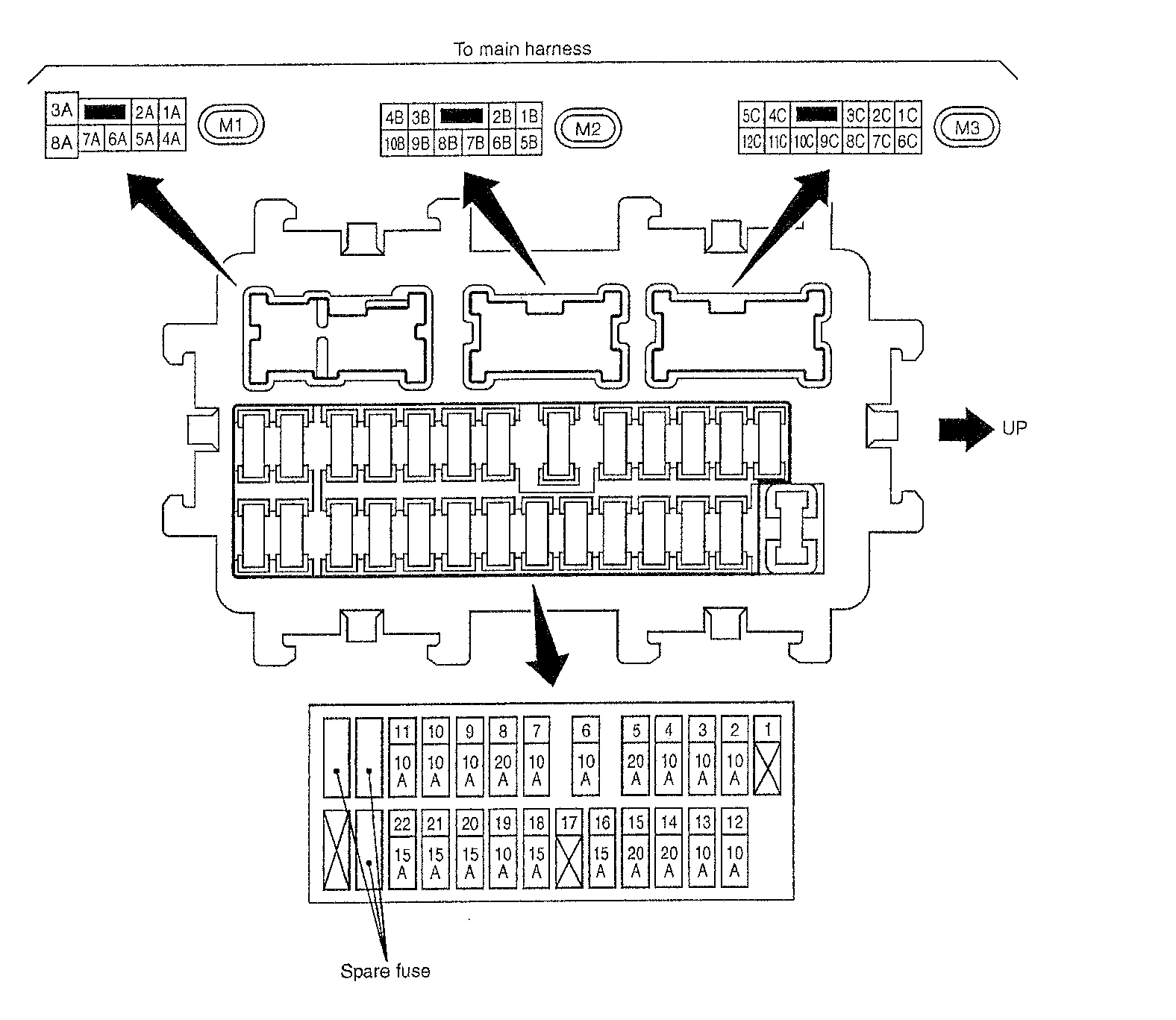

Fig 1: Identifying Of Passenger Compartment Fuses & Relays - Fuse Block/Junction Box

Courtesy of NISSAN MOTOR CO., U.S.A.

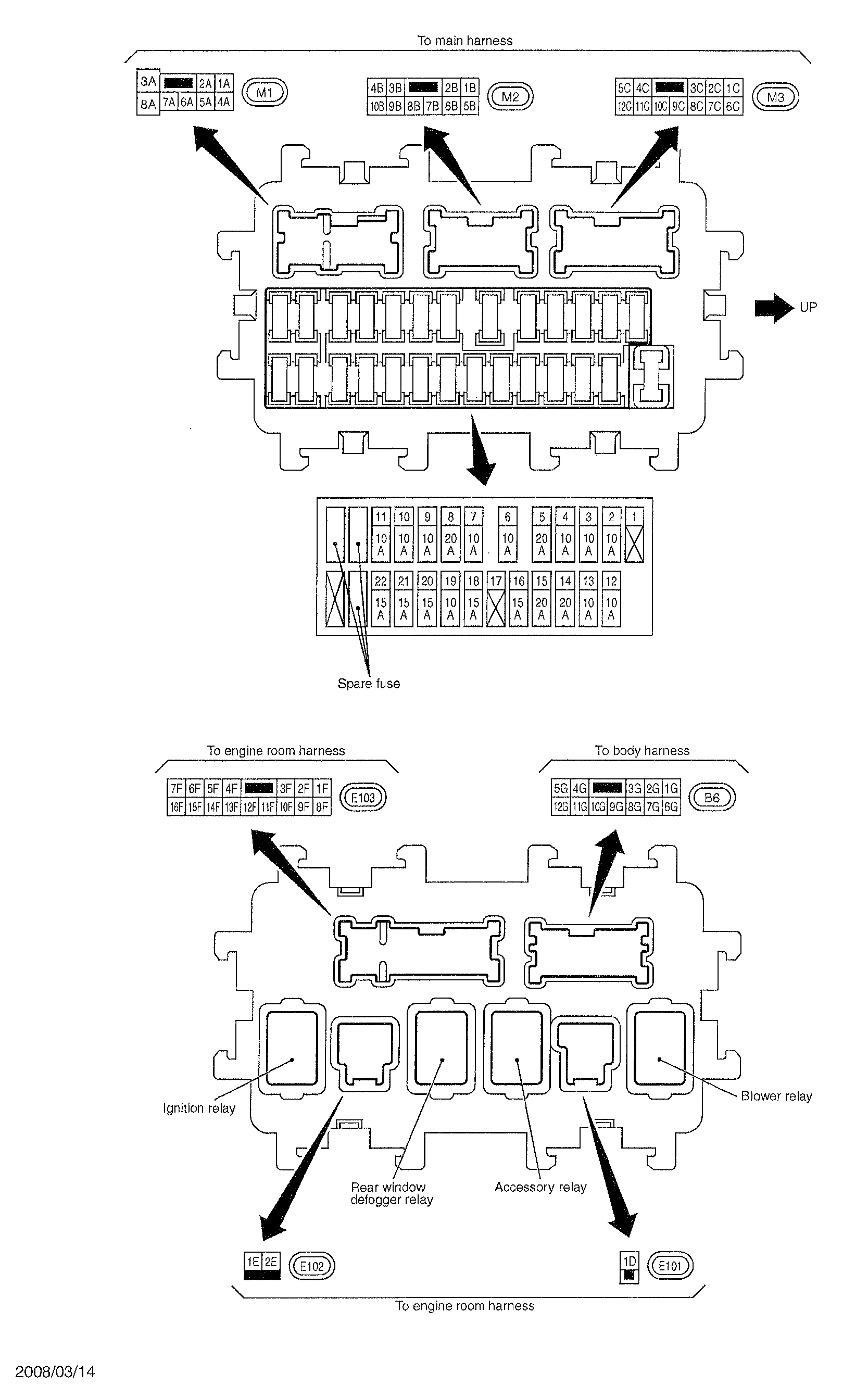

Fig 2: Identifying Of Passenger Compartment Fuse Block/Junction Box Relays

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Passenger Compartment Fuse Block/Junction Box Numbering Scheme (Fuses "1" Through "22")

Courtesy of NISSAN MOTOR CO., U.S.A.
