Exploded View: Disassembly

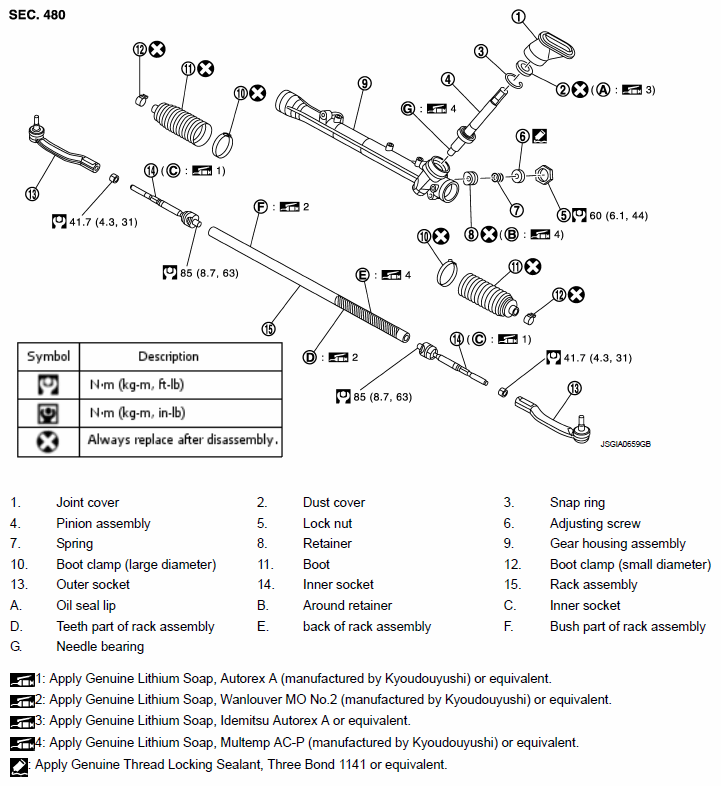

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
G05915406Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " and the followings for the symbols in the figure.
