Hands-Free Phone System
>>
System Diagram
System Diagram

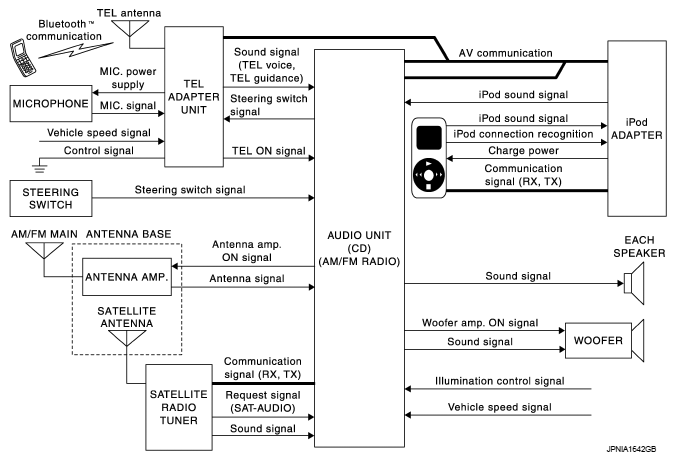

Fig 1: Connection Function And Hands-Free Phone System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Fig 2: Connection Function And Hands-Free Phone System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
